Revisiting the structural and optical properties of <i>γ</i>-N<sub>2</sub>

Jinwei Yan; Hai-An Xu; Pu Wang; Lewis J. Conway; Wan Xu; Chuansheng Hu; Zeming Qi; Xiao-Di Liu; Eugene Gregoryanz

doi:10.1063/5.0315313

Volume 11 Issue 4

Jul. 2026

Turn off MathJax

Article Contents

Article Navigation > Matter and Radiation at Extremes > 2026 > 11(4): 047802

Jinwei Yan, Hai-An Xu, Pu Wang, Lewis J. Conway, Wan Xu, Chuansheng Hu, Zeming Qi, Xiao-Di Liu, Eugene Gregoryanz. Revisiting the structural and optical properties of γ-N2[J]. Matter and Radiation at Extremes, 2026, 11(4): 047802. doi: 10.1063/5.0315313

Citation:

Jinwei Yan, Hai-An Xu, Pu Wang, Lewis J. Conway, Wan Xu, Chuansheng Hu, Zeming Qi, Xiao-Di Liu, Eugene Gregoryanz. Revisiting the structural and optical properties of γ-N₂[J]. Matter and Radiation at Extremes, 2026, 11(4): 047802. doi: 10.1063/5.0315313

Citation:

PDF( 5061 KB)

Revisiting the structural and optical properties of γ-N₂

doi: 10.1063/5.0315313

Jinwei Yan^{1, 2, 3
,},
Hai-An Xu¹,
Pu Wang¹,
Lewis J. Conway^{4, 5
,},
Wan Xu^1
,,
Chuansheng Hu^6
,,
Zeming Qi^6
,,
Xiao-Di Liu^{1
,
,
,},
Eugene Gregoryanz^{1, 2, 3, 7
,
,
,}

1.
Key Laboratory of Materials Physics, Institute of Solid State Physics, HFIPS, Chinese Academy of Sciences, Hefei 230031, China
2.
Shanghai Key Laboratory MFree, Shanghai Advanced Research in Physical Sciences, Pudong, Shanghai 201203, China
3.
Centre for Science at Extreme Conditions and School of Physics and Astronomy, University of Edinburgh, Edinburgh, United Kingdom
4.
Department of Materials Science and Metallurgy, University of Cambridge, 27 Charles Babbage Road, Cambridge CB3 0FS, United Kingdom
5.
Advanced Institute for Materials Research, Tohoku University, Sendai 980-8577, Japan
6.
National Synchrotron Radiation Laboratory, University of Science and Technology of China, Hefei, Anhui 230029, China
7.
Center for High Pressure Science and Technology Advanced Research, Shanghai, China

More Information

Corresponding author: a)Authors to whom correspondence should be addressed: xiaodi@issp.ac.cn and e.gregoryanz@ed.ac.uk
Received Date: 2025-12-05
Accepted Date: 2026-03-12

Available Online: 2026-07-24

Publish Date: 2026-07-24

Abstract

Abstract

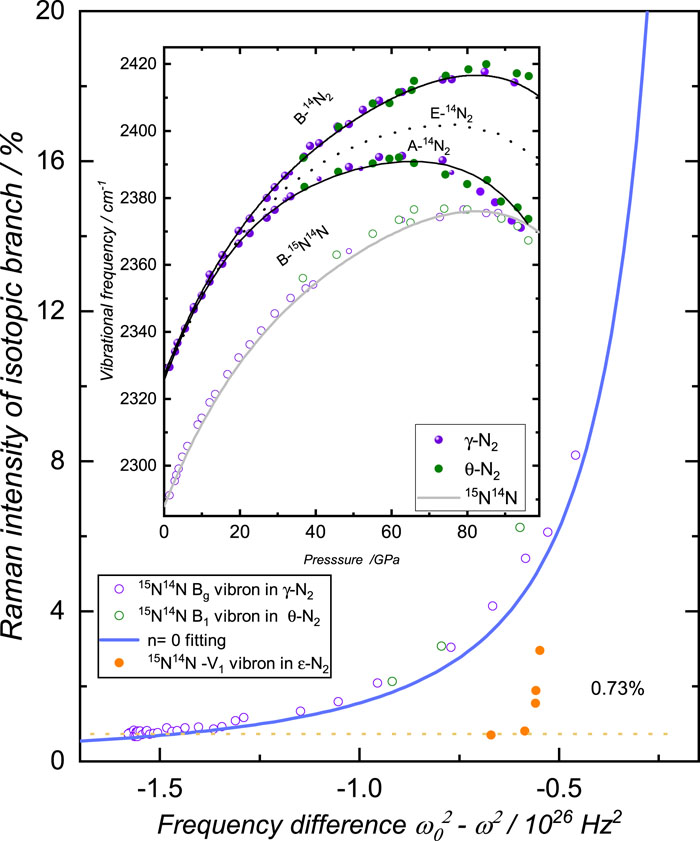

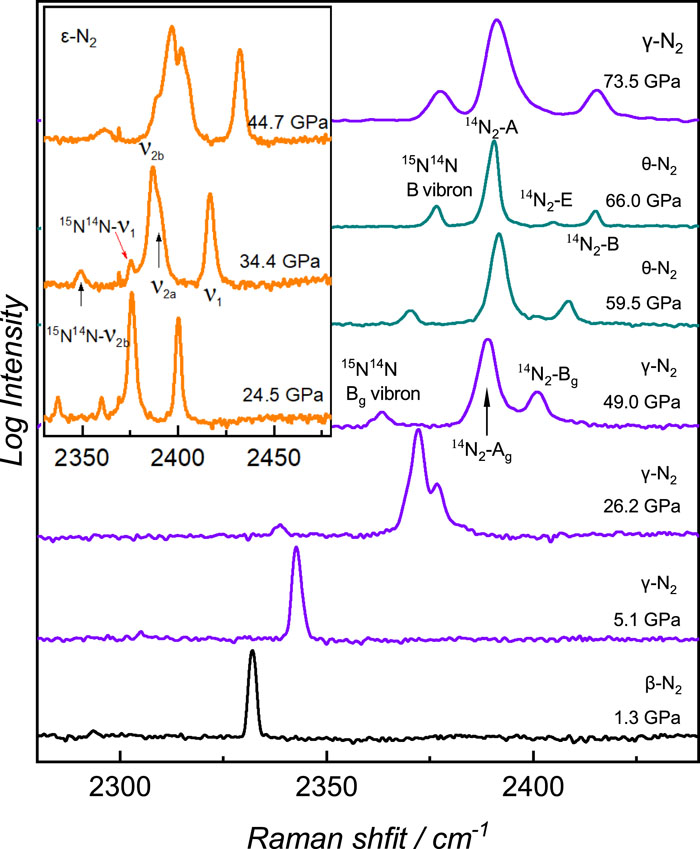

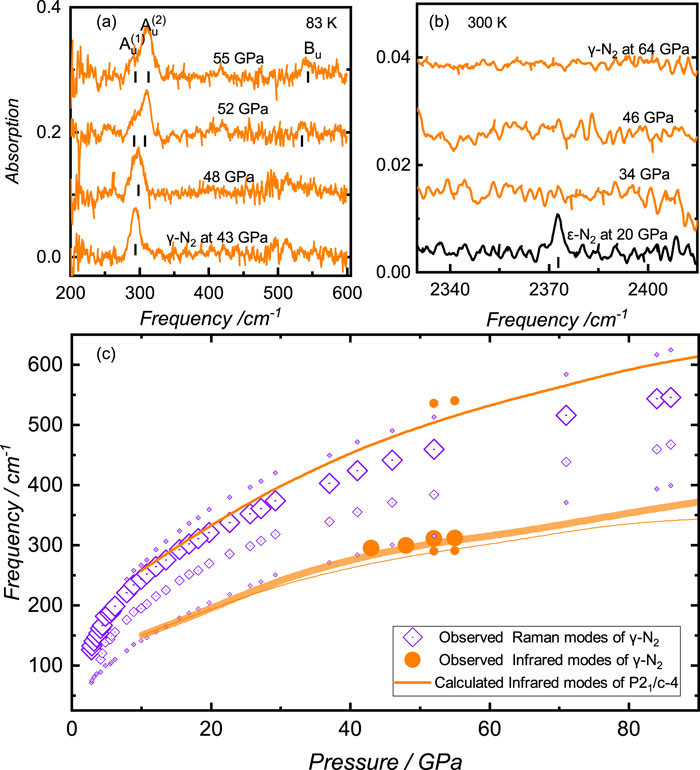

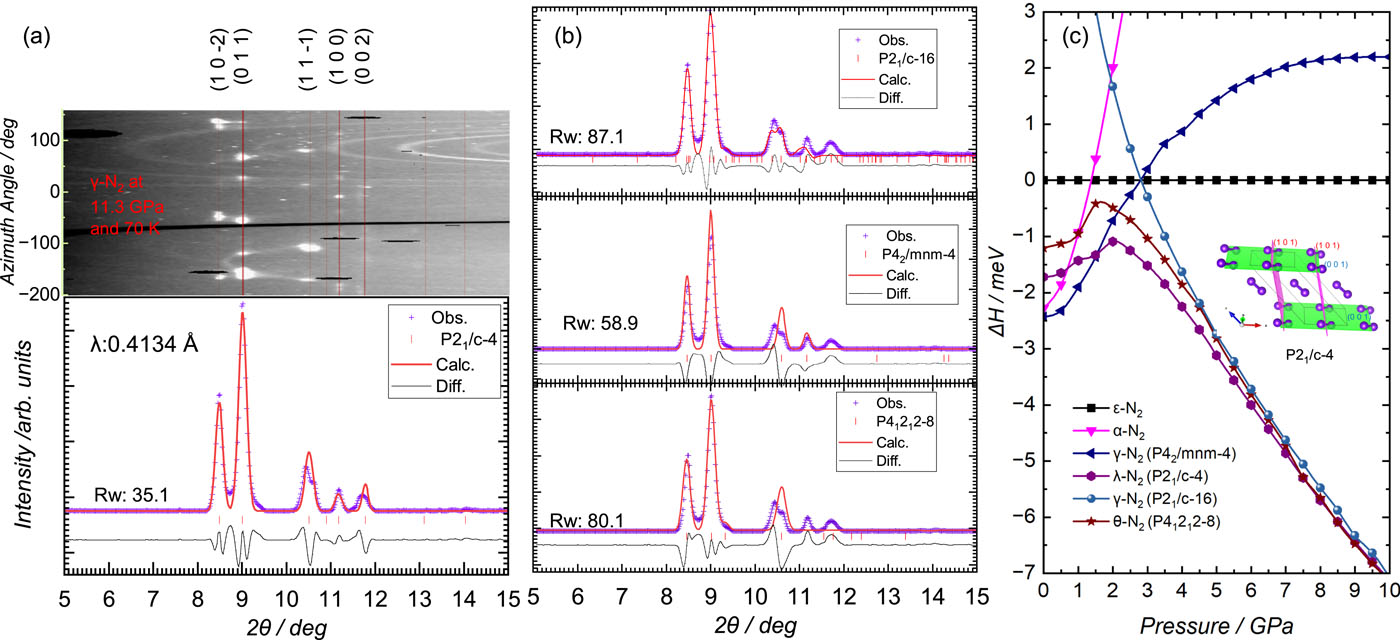

For decades, γ-N₂ has been known to exist at very low temperatures and pressures, located in a tiny area of the nitrogen phase diagram. Recently, it was shown that γ-N₂ occupies most of the P–T space usually associated with molecular phases such as δ, ɛ, and ζ, and that it plays a pivotal role in shaping nitrogen’s phase diagram. Using powder synchrotron X-ray diffraction, Raman and infrared spectroscopy, and density function theory calculations, we have investigated the structural and optical properties of γ-N₂ in a wide P–T range. The combined X-ray diffraction and infrared spectroscopy results unequivocally demonstrate that γ-N₂ adopts the monoclinic (P2₁/c space group) configuration with two N₂ molecules per unit cell. It appears that the γ-N₂ is structurally closely related to θ-N₂, leading to both phases having very similar Raman signatures. Additionally, the Raman spectroscopy reveals a vibrational mode intensity resonance effect in both phases, caused by a strong vibrational coupling between the isotopic ¹⁵N¹⁴N and ¹⁴N₂ vibrational excitations.

The authors have no conflicts to disclose.
Conflict of Interest
Author Contributions
Jinwei Yan: Data curation (equal). Hai-An Xu: Data curation (equal). Pu Wang: Data curation (equal). Lewis J. Conway: Data curation (equal). Wan Xu: Data curation (equal). Chuansheng Hu: Data curation (equal). Zeming Qi: Data curation (equal). Xiao-Di Liu: Data curation (equal); Investigation (equal); Resources (equal); Supervision (equal); Writing – review & editing (equal). Eugene Gregoryanz: Investigation (equal); Supervision (equal); Writing – original draft (equal); Writing – review & editing (equal).
The data that support the findings of this study are available within the article and from the corresponding authors upon reasonable request.

FullText(HTML)

References(32)

References

[1]	N. N. Greenwood and A. Earnshaw, Chemistry of the Elements (Elsevier, 1984).
[2]	C. A. Swenson, “New modification of solid nitrogen,” J. Chem. Phys. 23, 1963–1964 (1955).10.1063/1.1740623
[3]	M. Hanfland, M. Lorenzen, C. Wassilew-Reul, and F. Zontone, “Structures of molecular nitrogen at high pressures,” Rev. High Pressure Sci. Technol. 7, 787–789 (1998).10.4131/jshpreview.7.787
[4]	A. F. Goncharov, E. Gregoryanz, H.-k. Mao, Z. Liu, and R. J. Hemley, “Optical evidence for a nonmolecular phase of nitrogen above 150 GPa,” Phys. Rev. Lett. 85, 1262–1265 (2000).10.1103/physrevlett.85.1262
[5]	S. Buchsbaum, R. L. Mills, and D. Schiferl, “Phase diagram of nitrogen determined by Raman spectroscopy from 15 to 300 K at pressures to 52 GPa,” J. Phys. Chem. 88, 2522–2525 (1984).10.1021/j150656a018
[6]	M. I. Eremets, R. J. Hemley, H.-k. Mao, and E. Gregoryanz, “Semiconducting non-molecular nitrogen up to 240 GPa and its low-pressure stability,” Nature 411, 170–174 (2001).10.1038/35075531
[7]	M. I. M. Scheerboom and J. A. Schouten, “Anomalous behavior of the vibrational spectrum of the high-pressure δ phase of nitrogen: A second-order transition,” Phys. Rev. Lett. 71, 2252–2255 (1993).10.1103/physrevlett.71.2252
[8]	E. Gregoryanz, A. F. Goncharov, R. J. Hemley, and H.-k. Mao, “High-pressure amorphous nitrogen,” Phys. Rev. B 64, 052103 (2001).10.1103/physrevb.64.052103
[9]	W. Sontising and G. J. O. Beran, “Theoretical assessment of the structure and stability of the λ phase of nitrogen,” Phys. Rev. Mater. 3, 095002 (2019).10.1103/physrevmaterials.3.095002
[10]	E. Gregoryanz, A. F. Goncharov, R. J. Hemley, H.-k. Mao, M. Somayazulu et al., “Raman, infrared, and x-ray evidence for new phases of nitrogen at high pressures and temperatures,” Phys. Rev. B 66, 224108 (2002).10.1103/physrevb.66.224108
[11]	G. W. Stinton, I. Loa, L. F. Lundegaard, and M. I. McMahon, “The crystal structures of δ and δ* nitrogen,” J. Chem. Phys. 131, 104511 (2009).10.1063/1.3204074
[12]	E. Gregoryanz, A. F. Goncharov, C. Sanloup, M. Somayazulu, H.-k. Mao et al., “High P-T transformations of nitrogen to 170 GPa,” J. Chem. Phys. 126, 184505 (2007).10.1063/1.2723069
[13]	S. Liu, M. Pu, Q. Tang, F. Zhang, B. Wu et al., “Raman spectroscopy and phase stability of λ-N2,” Solid State Commun. 310, 113843 (2020).10.1016/j.ssc.2020.113843
[14]	C. J. Pickard and R. J. Needs, “High-pressure phases of nitrogen,” Phys. Rev. Lett. 102, 125702 (2009).10.1103/physrevlett.102.125702
[15]	M. Frost, R. T. Howie, P. Dalladay-Simpson, A. F. Goncharov, and E. Gregoryanz, “Novel high-pressure nitrogen phase formed by compression at low temperature,” Phys. Rev. B 93, 024113 (2016).10.1103/physrevb.93.024113
[16]	J. Yan, X. Liu, F. A. Gorelli, H. Xu, H. Zhang et al., “Compression rate of dynamic diamond anvil cells from room temperature to 10 K,” Rev. Sci. Instrum. 93, 063901 (2022).10.1063/5.0091102
[17]	J. Yan, P. Dalladay-Simpson, L. J. Conway, F. Gorelli, C. Pickard et al., “Remarkable stability of γ-N2 and its prevalence in the nitrogen phase diagram,” Sci. Rep. 14, 16394 (2024).10.1038/s41598-024-66493-0
[18]	X.-D. Liu, R. T. Howie, H.-C. Zhang, X.-J. Chen, and E. Gregoryanz, “High-pressure behavior of hydrogen and deuterium at low temperatures,” Phys. Rev. Lett. 119, 065301 (2017).10.1103/physrevlett.119.065301
[19]	X.-D. Liu, P. Dalladay-Simpson, R. T. Howie, H.-C. Zhang, W. Xu et al., “Counterintuitive effects of isotopic doping on the phase diagram of H2-HD-D2 molecular alloy,” Proc. Natl. Acad. Sci. U. S. A. 117, 13374–13378 (2020).10.1073/pnas.2001128117
[20]	H. Xu, W. Xu, P. Wang, L. Liu, X.-D. Liu et al., “Phase transitions in H2-HD-D2 mixtures up to 350 GPa,” Phys. Rev. B 111, 024109 (2025).10.1103/physrevb.111.024109
[21]	J. Feng, X.-D. Liu, H. Xu, P. Wang, G. J. Ackland et al., “Observation of ΔJ = 0 rotational excitation in dense hydrogens,” Phys. Rev. Lett. 136, 016101 (2026).10.1103/7m51-n6w7
[22]	Y.-A. Peng, H.-Y. Wang, F.-H. Su, P. Wang, H.-A. Xu et al., “Synthesis of lutetium hydrides at high pressures,” Matter Radiat. Extremes 10, 017804 (2024).10.1063/5.0227283
[23]	S. J. Clark, M. D. Segall, C. J. Pickard, P. J. Hasnip, M. I. J. Probert et al., “First principles methods using CASTEP,” Z. Kristallogr.—Cryst. Mater. 220, 567–570 (2005).10.1524/zkri.220.5.567.65075
[24]	Y. Fei, A. Ricolleau, M. Frank, K. Mibe, G. Shen et al., “Toward an internally consistent pressure scale,” Proc. Natl. Acad. Sci. U. S. A. 104, 9182–9186 (2007).10.1073/pnas.0609013104
[25]	A. F. Goncharov, I. G. Batyrev, E. Bykova, L. Brüning, H. Chen et al., “Structural diversity of molecular nitrogen on approach to polymeric states,” Phys. Rev. B 109, 064109 (2024).10.1103/physrevb.109.064109
[26]	R. L. Mills and A. F. Schuch, “Crystal structure of gamma nitrogen,” Phys. Rev. Lett. 23, 1154–1156 (1969).10.1103/physrevlett.23.1154
[27]	A. F. Schuch and R. L. Mills, “Crystal structures of the three modifications of nitrogen 14 and nitrogen 15 at high pressure,” J. Chem. Phys. 52, 6000–6008 (1970).10.1063/1.1672899
[28]	P. Dalladay-Simpson, F. Capitani, and F. A. Gorelli, “Validation of a structural candidate for γ-N2 by synchrotron far-infrared spectroscopy,” Phys. Rev. B 112, 014102 (2025).10.1103/q4v6-v7y7
[29]	A. Mariotti, “Atmospheric nitrogen is a reliable standard for natural 15N abundance measurements,” Nature 303, 685–687 (1983).10.1038/303685a0
[30]	T. B. Coplen, Compilation of Minimum and Maximum Isotope Ratios of Selected Elements in Naturally Occurring Terrestrial Materials and Reagents, 2001-4222 (US Department of the Interior, US Geological Survey, 2002).
[31]	J. R. De Laeter, J. K. Böhlke, P. De Bievre, H. Hidaka, H. Peiser et al., “Atomic weights of the elements. Review 2000 (IUPAC technical report),” Pure Appl. Chem. 75, 683–800 (2003).10.1351/pac200375060683.
[32]	H. Olijnyk and A. P. Jephcoat, “Vibrational dynamics of isotopically dilute nitrogen to 104 GPa,” Phys. Rev. Lett. 83, 332–335 (1999).10.1103/physrevlett.83.332
