Static and dynamic diamond anvil cell (s-dDAC): A bidirectional remote controlled device for static and dynamic compression/decompression

doi: 10.1063/5.0061583

Su Lei^{1, 2
,
,
,},
Shi Kaiyuan²,
Zhang Li¹,
Wang Yanlong²,
Yang Guoqiang^{1
,
,}

1.
Key Laboratory of Photochemistry, Institute of Chemistry, University of Chinese Academy of Sciences, Chinese Academy of Sciences, Beijing 100190, China
2.
Center for High Pressure Science and Technology Advanced Research, Beijing 100094, China

More Information

Corresponding author: a)Authors to whom correspondence should be addressed: leisu2050@iccas.ac.cn and gqyang@iccas.ac.cn; a)Authors to whom correspondence should be addressed: leisu2050@iccas.ac.cn and gqyang@iccas.ac.cn
Received Date: 2021-06-28
Accepted Date: 2021-11-12

Available Online: 2022-01-01

Publish Date: 2022-01-01

Abstract

Abstract

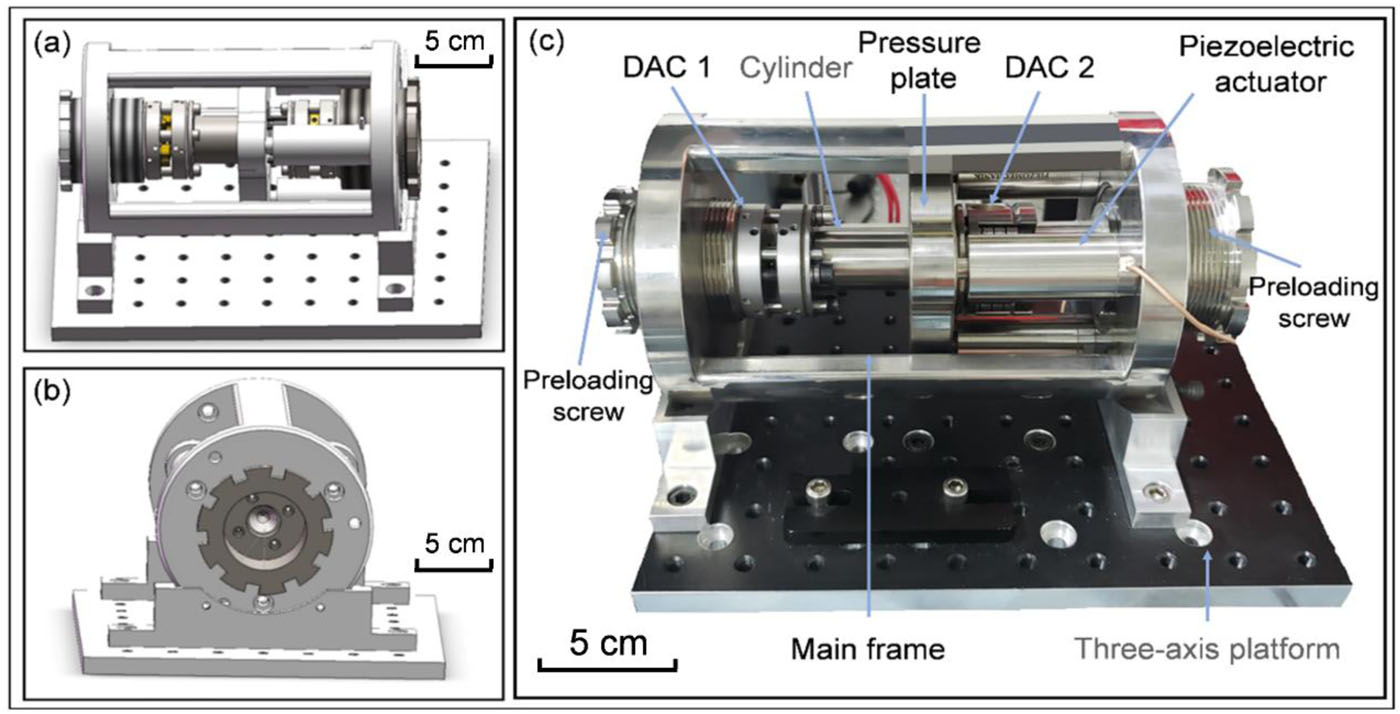

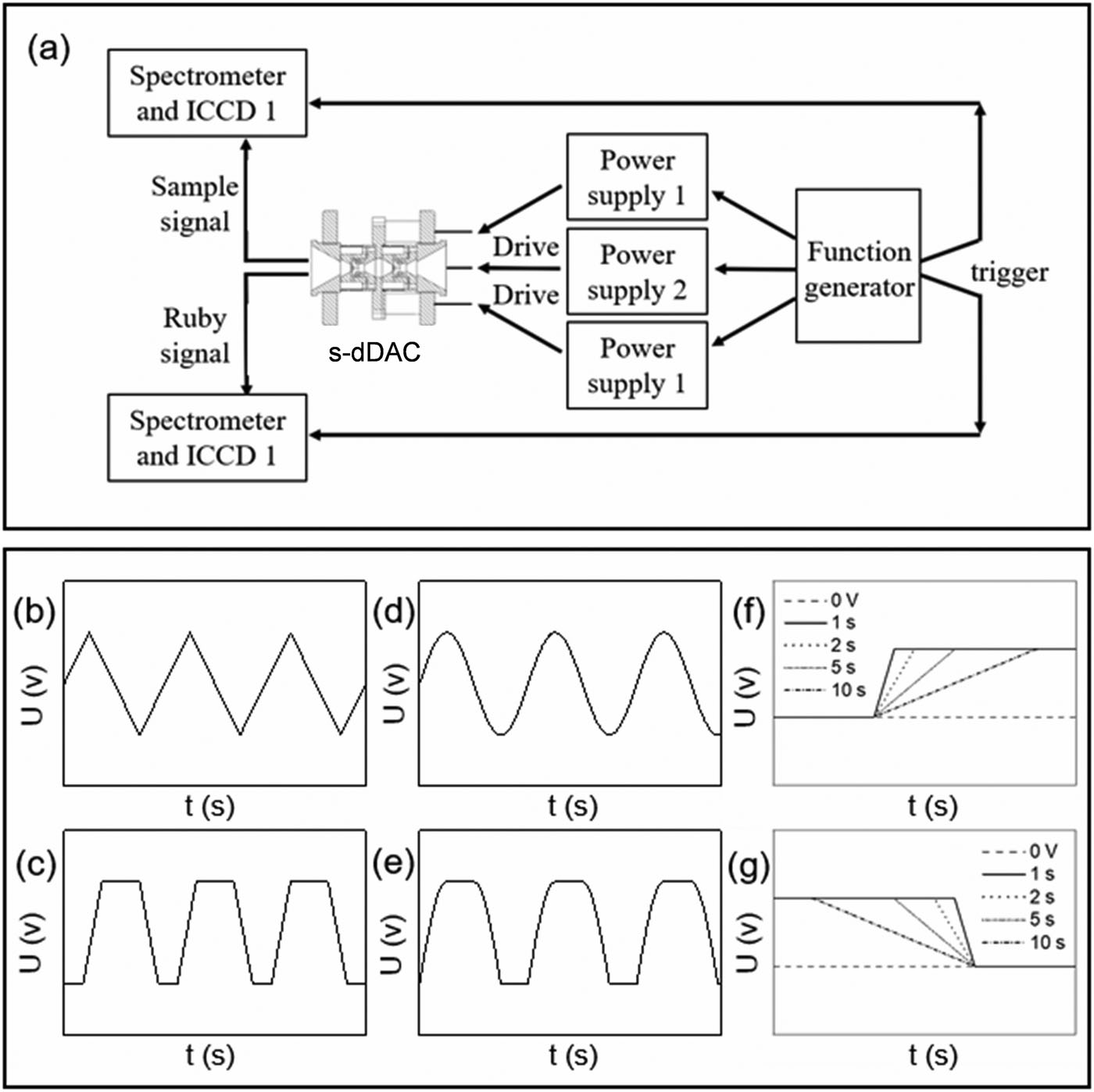

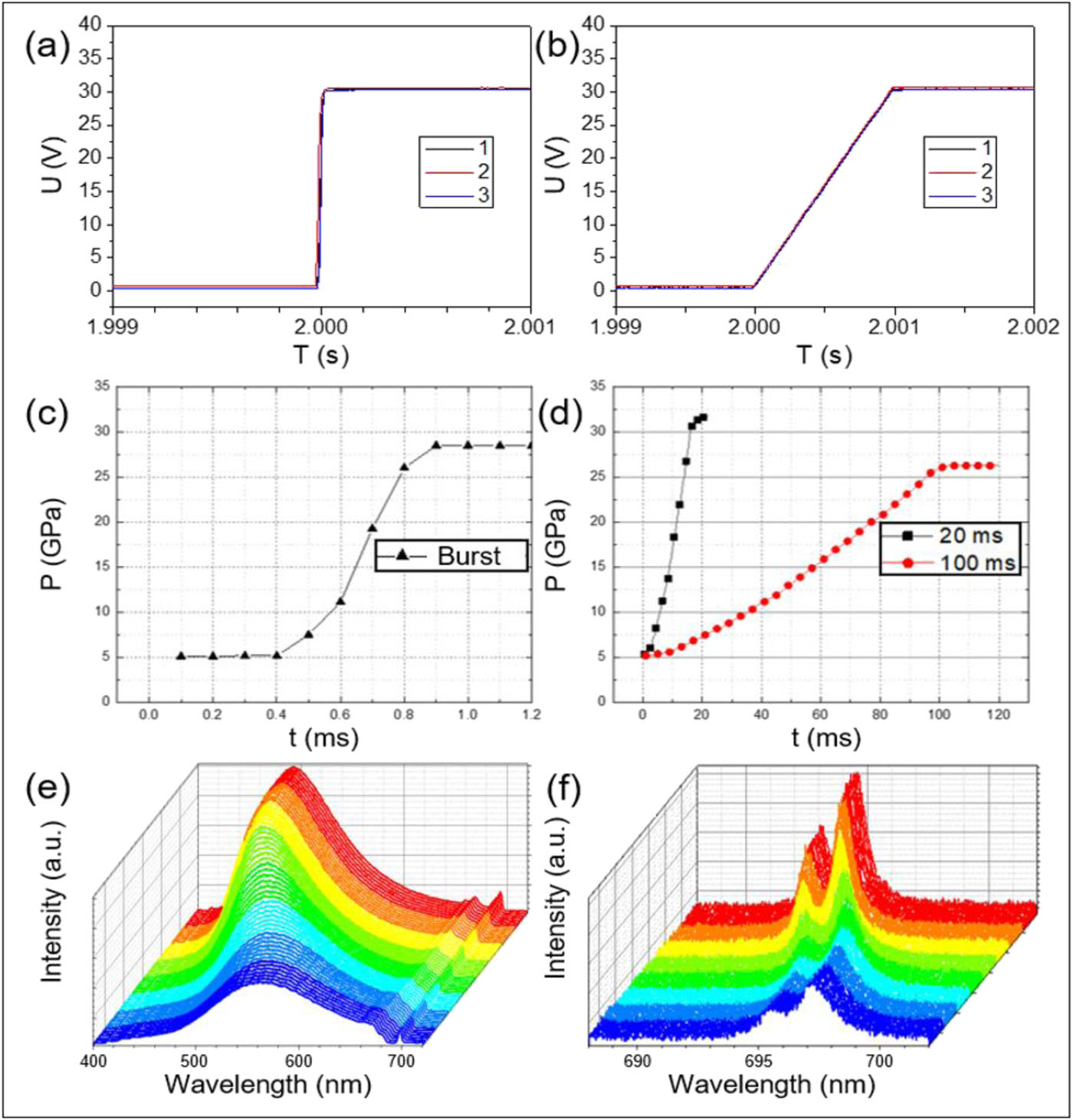

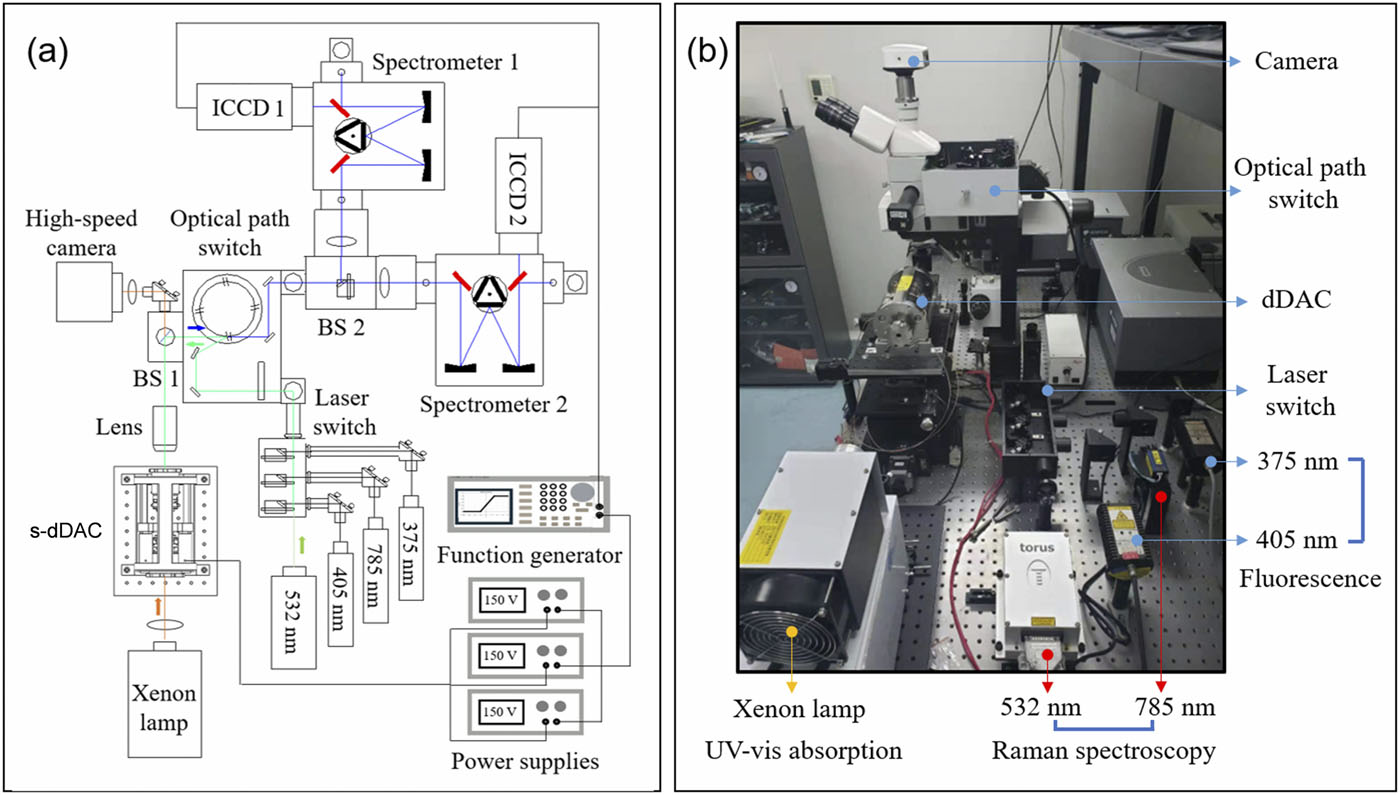

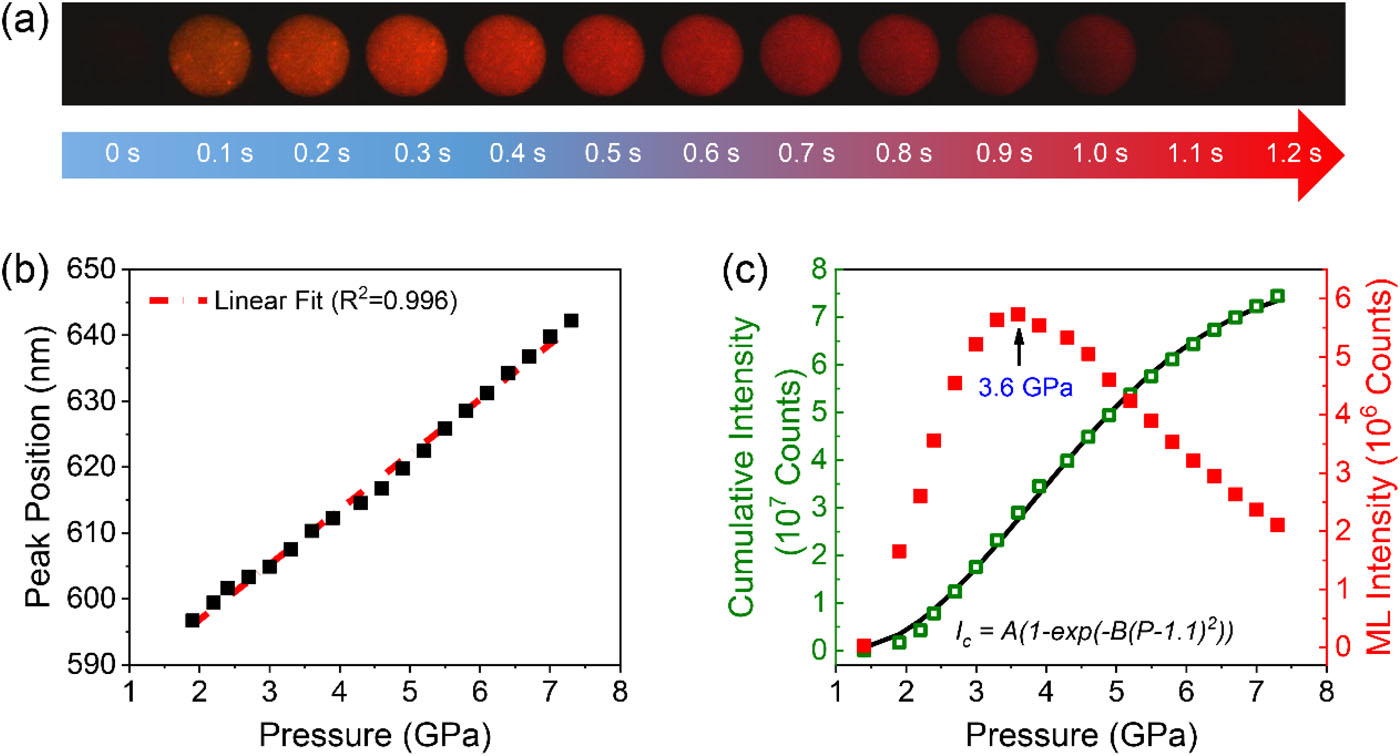

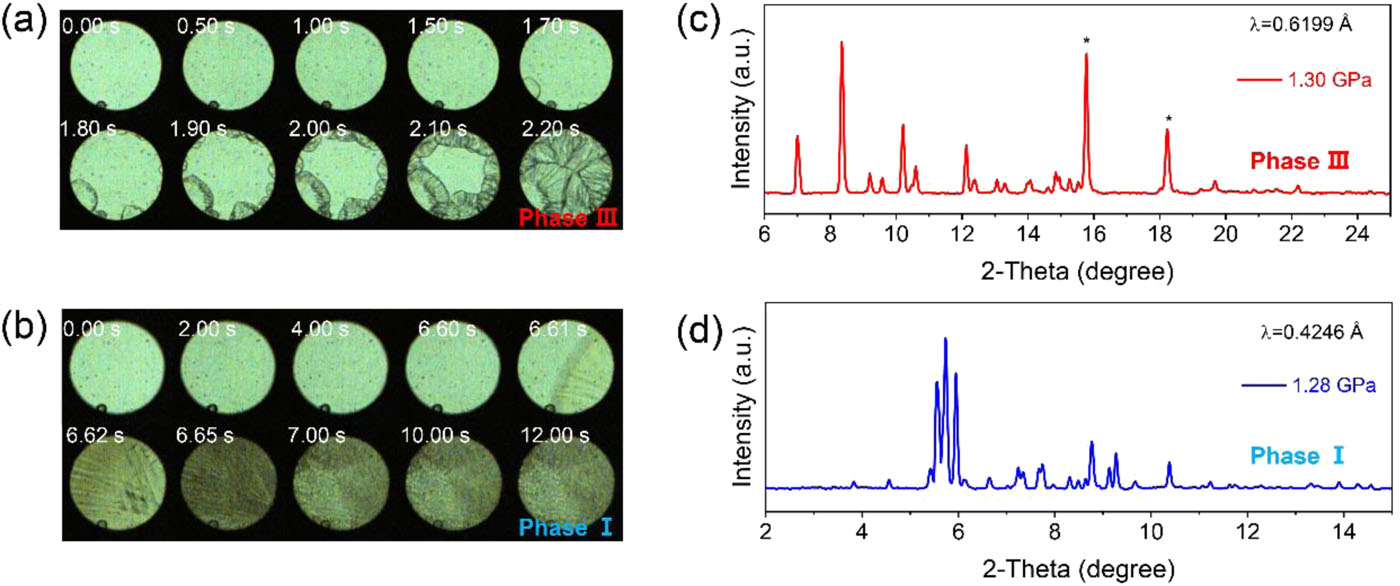

A novel bidirectional remotely controlled device for static and dynamic compression/decompression using diamond anvil cells (DACs) has been developed that can control pressure in an accurate and consistent manner. Electromechanical piezoelectric actuators are applied to a conventional DAC, allowing applications under a variety of pressure conditions. Using this static and dynamic DAC (s-dDAC), it is possible to addresses the poorly studied experimental regime lying between purely static and purely dynamic studies. The s-dDAC, driven by three piezoelectric actuators, can be combined with a time-resolved spectral measurement system and high-speed imaging device to study the structural changes, chemical reactions, and properties of materials under extreme conditions. The maximum compression/decompression rate or pressure range highly depends on the culet size of the anvil, and a higher compression rate and wider pressure range can be realized in a DAC with smaller anvil culet. With our s-dDAC, we have been able to achieve the highest compression rate to date with a 300 μm culet anvil: 48 TPa/s. An overview of a variety of experimental measurements possible with our device is presented.

FullText(HTML)

References(33)

References

[1]	S. M. Hong, L. Y. Chen, X. R. Liu et al., “High pressure jump apparatus for measuring Grűneisen parameter of NaCl and studying metastable amorphous phase of poly (ethylene terephthalate),” Rev. Sci. Instrum. 76, 053905 (2005).10.1063/1.1899443
[2]	C. L. Lin and J. S. Tse, “High-pressure nonequilibrium dynamics on second-to-microsecond time scales: Application of time-resolved X-ray diffraction and dynamic compression in ice,” J. Phys. Chem. Lett. 12, 8024–8038 (2021).10.1021/acs.jpclett.1c01623
[3]	J. Quednau and G. M. Schneider, “A new high-pressure cell for differential pressure‐jump experiments using optical detection,” Rev. Sci. Instrum. 60, 3685–3687 (1989).10.1063/1.1140475
[4]	S. Sinanis and G. M. Schneider, “Pressure-jump investigations on the kinetics of the isotropic‐nematic phase transition of a liquid crystal: Time behavior of the scattered and transmitted light intensities for PCH 5,” Ber. Bunsenges. Phys. Chem. 102, 745–750 (1998).10.1002/bbpc.19981020507
[5]	M. Steinhart, M. Kriechbaum, K. Pressl et al., “High-pressure instrument for small- and wide-angle x-ray scattering. II. Time-resolved experiments,” Rev. Sci. Instrum. 70, 1540–1545 (1999).10.1063/1.1149621
[6]	J. Woenckhaus, R. Köhling, R. Winter et al., “High pressure-jump apparatus for kinetic studies of protein folding reactions using the small-angle synchrotron x-ray scattering technique,” Rev. Sci. Instrum. 71, 3895–3899 (2000).10.1063/1.1290508
[7]	J. Woenckhaus, R. Köhling, P. Thiyagarajan et al., “Pressure-jump small-angle x-ray scattering detected kinetics of staphylococcal nuclease folding,” Biophys. J. 80, 1518–1523 (2001).10.1016/s0006-3495(01)76124-3
[8]	H. Herberhold and R. Winter, “Temperature- and pressure-induced unfolding and refolding of ubiquitin: A static and kinetic Fourier transform infrared spectroscopy study,” Biochemistry 41, 2396–2401 (2002).10.1021/bi012023b
[9]	H. Herberhold, S. Marchal, R. Lange et al., “Characterization of the pressure-induced intermediate and unfolded state of red-shifted green fluorescent protein—A static and kinetic FTIR, UV/VIS and fluorescence spectroscopy study,” J. Mol. Biol. 330, 1153–1164 (2003).10.1016/s0022-2836(03)00657-0
[10]	W. J. Evans, C.-S. Yoo, G. W. Lee et al., “Dynamic diamond anvil cell (dDAC): A novel device for studying the dynamic-pressure properties of materials,” Rev. Sci. Instrum. 78, 073904 (2007).10.1063/1.2751409
[11]	G. W. Lee, W. J. Evans, and C.-S. Yoo, “Crystallization of water in a dynamic diamond-anvil cell: Evidence for ice VII-like local order in supercompressed water,” Phys. Rev. B 74, 134112 (2006).10.1103/physrevb.74.134112
[12]	J.-Y. Chen and C.-S. Yoo, “High density amorphous ice at room temperature,” Proc. Natl. Acad. Sci. U. S. A. 108, 7685–7688 (2011).10.1073/pnas.1100752108
[13]	G. W. Lee, W. J. Evans, and C.-S. Yoo, “Dynamic pressure-induced dendritic and shock crystal growth of ice VI,” Proc. Natl. Acad. Sci. U. S. A. 104, 9178–9181 (2007).10.1073/pnas.0609390104
[14]	S. V. Sinogeikin, J. S. Smith, E. Rod et al., “Online remote control systems for static and dynamic compression and decompression using diamond anvil cells,” Rev. Sci. Instrum. 86, 072209 (2015).10.1063/1.4926892
[15]	Y.-J. Kim, Y.-H. Lee, S. Lee et al., “Shock growth of ice crystal near equilibrium melting pressure under dynamic compression,” Proc. Natl. Acad. Sci. U. S. A. 116, 8679–8684 (2019).10.1073/pnas.1818122116
[16]	H.-P. Liermann, W. Morgenroth, A. Ehnes et al., “The Extreme conditions beamline at PETRA III, DESY: Possibilities to conduct time resolved monochromatic diffraction experiments in dynamic and laser heated DAC,” J. Phys.: Conf. Ser. 215, 012029 (2010).10.1088/1742-6596/215/1/012029
[17]	C. Lin, J. S. Smith, S. V. Sinogeikin et al., “Experimental evidence of low-density liquid water upon rapid decompression,” Proc. Natl. Acad. Sci. U. S. A. 115, 2010–2015 (2018).10.1073/pnas.1716310115
[18]	C. Lin, J. S. Smith, S. V. Sinogeikin et al., “A metastable liquid melted from a crystalline solid under decompression,” Nat. Commun 8, 1–6 (2017).10.1038/ncomms14260
[19]	B. Haberl, M. Guthrie, B. D. Malone et al., “Controlled formation of metastable germanium polymorphs,” Phys. Rev. B 89, 144111 (2014).10.1103/physrevb.89.144111
[20]	C. Lin, J. S. Smith, S. V. Sinogeikin et al., “Kinetics of the B1-B2 phase transition in KCl under rapid compression,” J. Appl. Phys. 119, 045902 (2016).10.1063/1.4940771
[21]	C. Lin, X. Yong, J. S. Tse et al., “Kinetically controlled two-step amorphization and amorphous-amorphous transition in ice,” Phys. Rev. Lett. 119, 135701 (2017).10.1103/physrevlett.119.135701
[22]	H. Cheng, J. Zhang, Y. Li et al., “A convenient dynamic loading device for studying kinetics of phase transitions and metastable phases using symmetric diamond anvil cells,” High Pressure Res. 38, 32–40 (2018).10.1080/08957959.2017.1396326
[23]	X. Dou, K. Ding, and B. Sun, “Development and application of piezoelectric driving diamond anvil cell device,” Rev. Sci. Instrum. 88, 123105 (2017).10.1063/1.4996063
[24]	X. Wu, X. Dou, K. Ding et al., “In situ tuning the single photon emission from single quantum dots through hydrostatic pressure,” Appl. Phys. Lett. 103, 252108 (2013).10.1063/1.4856755
[25]	S. Yang, K. Ding, X. Dou et al., “Zinc-blende and wurtzite GaAs quantum dots in nanowires studied using hydrostatic pressure,” Phys. Rev. B 92, 165315 (2015).10.1103/physrevb.92.165315
[26]	Y. Ye, X. Dou, K. Ding et al., “Single photon emission from deep-level defects in monolayer WSe2,” Phys. Rev. B 95, 245313 (2017).10.1103/physrevb.95.245313
[27]	L. Zhang, K. Shi, Y. Wang et al., “Compression rate-dependent crystallization of pyridine,” J. Phys. Chem. C 125, 6983–6989 (2021).10.1021/acs.jpcc.1c01163
[28]	P. Xiong and M. Peng, “Near infrared mechanoluminescence from the Nd3+ doped perovskite LiNbO3:Nd3+ for stress sensors,” J. Mater. Chem. C 7, 6301–6307 (2019).10.1039/c9tc00242a
[29]	Y. Du, Y. Jiang, T. Sun et al., “Mechanically excited multicolor luminescence in lanthanide ions,” Adv. Mater. 31, 1807062 (2019).10.1002/adma.201807062
[30]	C. G. Camara, J. V. Escobar, J. R. Hird et al., “Correlation between nanosecond X-ray flashes and stick-slip friction in peeling tape,” Nature 455, 1089–1092 (2008).10.1038/nature07378
[31]	H. Zhang, Y. Wei, X. Huang et al., “Recent development of elastico-mechanoluminescent phosphors,” J. Lumin. 207, 137–148 (2019).10.1016/j.jlumin.2018.10.117
[32]	L. Zhang, K. Shi, Y. Wang et al., “Unraveling the anomalous mechanoluminescence intensity change and pressure-induced red-shift for manganese-doped zinc sulfide,” Nano Energy 85, 106005 (2021).10.1016/j.nanoen.2021.106005
[33]	X. Wang, H. Zhang, R. Yu et al., “Dynamic pressure mapping of personalized handwriting by a flexible sensor matrix based on the mechanoluminescence process,” Adv. Mater. 27, 2324–2331 (2015).10.1002/adma.201405826
