Emission of fused silica and KBr samples in the UV and visible spectral ranges under irradiation with 2.7 MeV electrons

E. Kh. Baksht; B. A. Alekseev; A. G. Burachenko; A. V. Vukolov; A. P. Potylitsyn; V. F. Tarasenko; S. R. Uglov; M. V. Shevelev

doi:10.1063/5.0061100

Volume 7 Issue 2

Mar. 2022

Turn off MathJax

Article Contents

Article Navigation > Matter and Radiation at Extremes > 2022 > 7(2): 026901

E. Kh. Baksht, B. A. Alekseev, A. G. Burachenko, A. V. Vukolov, A. P. Potylitsyn, V. F. Tarasenko, S. R. Uglov, M. V. Shevelev. Emission of fused silica and KBr samples in the UV and visible spectral ranges under irradiation with 2.7 MeV electrons[J]. Matter and Radiation at Extremes, 2022, 7(2): 026901. doi: 10.1063/5.0061100

Citation:

E. Kh. Baksht, B. A. Alekseev, A. G. Burachenko, A. V. Vukolov, A. P. Potylitsyn, V. F. Tarasenko, S. R. Uglov, M. V. Shevelev. Emission of fused silica and KBr samples in the UV and visible spectral ranges under irradiation with 2.7 MeV electrons[J]. Matter and Radiation at Extremes, 2022, 7(2): 026901. doi: 10.1063/5.0061100

Citation:

E. Kh. Baksht, B. A. Alekseev, A. G. Burachenko, A. V. Vukolov, A. P. Potylitsyn, V. F. Tarasenko, S. R. Uglov, M. V. Shevelev. Emission of fused silica and KBr samples in the UV and visible spectral ranges under irradiation with 2.7 MeV electrons[J]. Matter and Radiation at Extremes, 2022, 7(2): 026901. doi: 10.1063/5.0061100

PDF( 2255 KB)

Emission of fused silica and KBr samples in the UV and visible spectral ranges under irradiation with 2.7 MeV electrons

doi: 10.1063/5.0061100

1.
Institute of High Current Electronics SB RAS, 2/3 Akademichesky Avenue, Tomsk 634055, Russia
2.
National Research Tomsk Polytechnic University, Tomsk Polytechnic University, 30 Lenin Avenue, Tomsk 634050, Russia

More Information

Corresponding author: a)Author to whom correspondence should be addressed: beh@loi.hcei.tsc.ru
Received Date: 2021-06-24
Accepted Date: 2021-11-22

Available Online: 2022-03-01

Publish Date: 2022-03-01

Abstract

Abstract

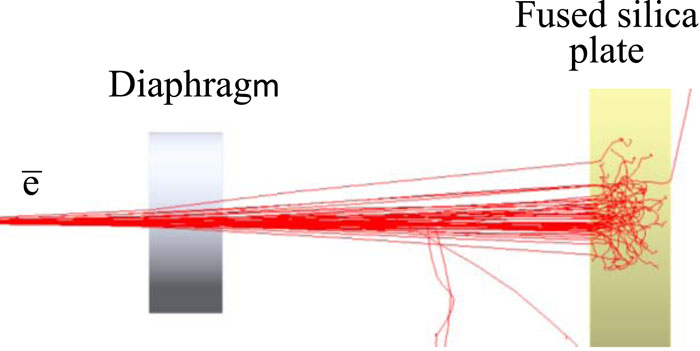

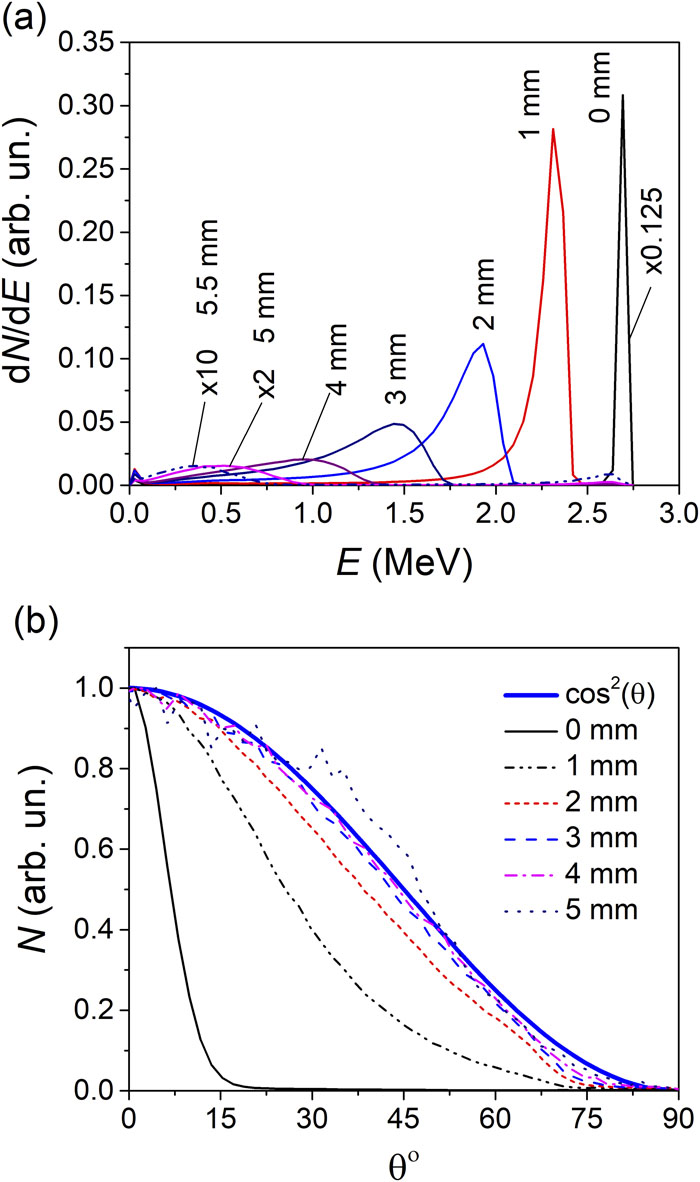

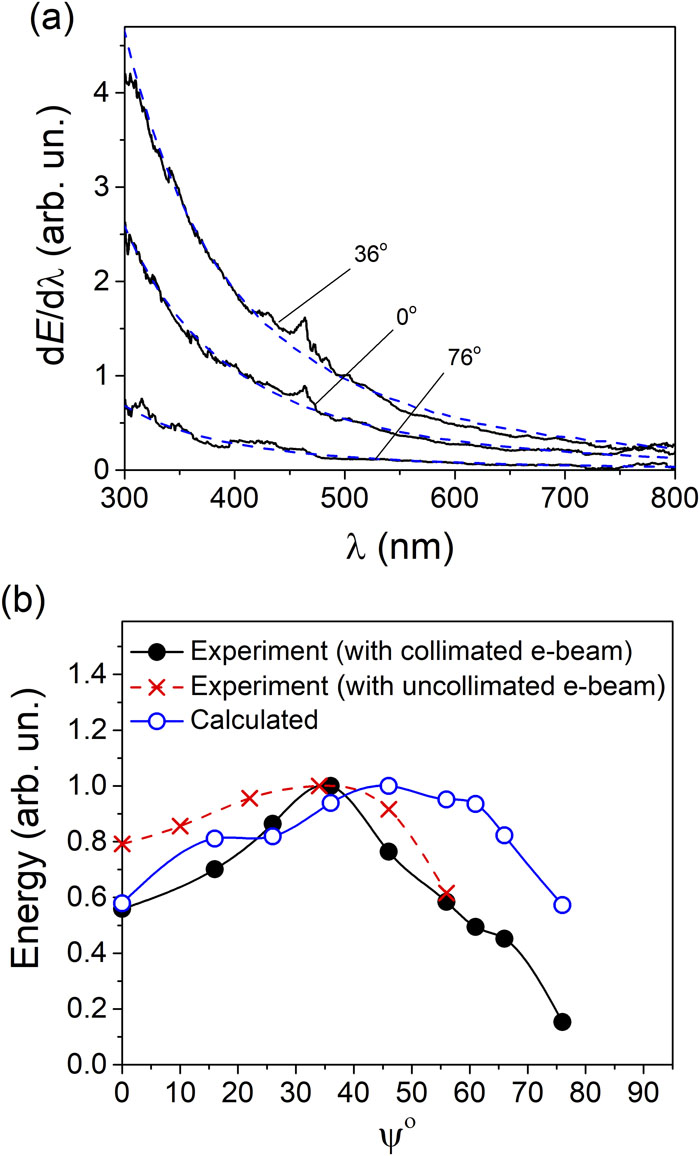

Fused silica and KBr samples were irradiated with a 2.7 MeV electron beam. The emission of fused silica and KBr samples in the UV and visible regions was studied under various experimental conditions. Numerical simulation of optical emission was carried out using the GEANT4 computer platform. Simulations of energy spectra and angular distributions of the beam electrons were performed for different target thicknesses. The results reveal the effect of scattering of the beam electrons on the angular distribution of Cherenkov radiation in fused silica samples with thicknesses exceeding the electron path length.

FullText(HTML)

References(28)

References

[1]	J. V. Jelley, Cherenkov Radiation and its Applications (Pergamon Press, London; New York; Paris; Los Angeles, 1958).
[2]	V. P. Zrelov, Izluchenie Vavilova-Cherenkova I Ego Primenenie V Fizike Vysokikh Energii. Chast I. (Vavilov-Cherenkov Radiation and its Uses in High-Energy Physics. Part I) (Atomizdat, Moscow, 1968).
[3]	A. S. Moore, D. J. Schlossberg, E. P. Hartouni, D. Sayre, M. J. Eckart et al., “A fused silica Cherenkov radiator for high precision time-of-flight measurement of DT γ and neutron spectra (invited),” Rev. Sci. Instrum. 89, 10I120 (2018).10.1063/1.5039322
[4]	D. J. Schlossberg, A. S. Moore, B. V. Beeman, M. J. Eckart, G. P. Grim et al., “Ab initio response functions for Cherenkov-based neutron detectors,” Rev. Sci. Instrum. 89, 10I136 (2018).10.1063/1.5039399
[5]	B. Ratcliff and J. Va’vra, “DIRC: Internally reflecting imaging Cherenkov detectors,” Nucl. Instrum. Methods Phys. Res., Sect. A 970, 163442 (2020).10.1016/j.nima.2020.163442
[6]	R. Kieffer, L. Bartnik, M. Bergamaschi, V. V. Bleko, M. Billing et al., “Direct observation of incoherent Cherenkov diffraction radiation in the visible range,” Phys. Rev. Lett. 121, 054802 (2018).10.1103/PhysRevLett.121.054802
[7]	J. Cohen-Tanugi, M. Convery, B. Ratcliff, X. Sarazin, J. Schwiening et al., “Optical properties of the DIRC fused silica Cherenkov radiator,” Nucl. Instrum. Methods Phys. Res., Sect. A 515, 680–700 (2003).10.1016/j.nima.2003.07.026
[8]	M. G. Albrow, H. Kim, S. Los, M. Mazzillo, E. Ramberg et al., “Quartz Cherenkov counters for fast timing: QUARTIC,” J. Instrum. 7, P10027 (2012).10.1088/1748-0221/7/10/p10027
[9]	L. Nozka, A. Brandt, M. Rijssenbeek, T. Sykora, T. Hoffman et al., “Design of Cherenkov bars for the optical part of the time-of-flight detector in Geant4,” Opt. Express 22, 28984–28996 (2014).10.1364/oe.22.028984
[10]	L. Burmistrov, D. Breton, G. Cavoto, V. Chaumat, J. Collin et al., “Test of full size Cherenkov detector for proton Flux Measurements,” Nucl. Instrum. Methods Phys. Res., Sect. A 787, 173–175 (2015).10.1016/j.nima.2014.11.089
[11]
[12]	M. J. Sadowski, “Generation and diagnostics of fast electrons within tokamak plasma,” Nukleonika 56, 85–98 (2011).
[13]	M. Rubel, S. Brezinsek, J. W. Coenen, A. Huber, A. Kirschner, A. Kreter et al., “Overview of wall probes for erosion and deposition studies in the TEXTOR tokamak,” Matter Radiat. Extremes 2, 87–104 (2017).10.1016/j.mre.2017.03.002
[14]	D. A. Sorokin, A. G. Burachenko, D. V. Beloplotov, V. F. Tarasenko, E. Kh. Baksht, et al., “Luminescence of crystals excited by a runaway electron beam and by excilamp radiation with a peak wavelength of 222 nm,” J. Appl. Phys. 122, 154902 (2017).10.1063/1.4996965
[15]	V. F. Tarasenko, V. I. Oleshko, M. V. Erofeev, E. I. Lipatov, D. V. Beloplotov et al., “Emission of diamonds, leucosapphire, and KU-1 quartz in the range of 200–800 nm excited by electron beams with a pulse duration of 0.5 and 12 ns,” J. Appl. Phys. 125, 244501 (2019).10.1063/1.5094956
[16]	V. F. Tarasenko, M. I. Lomaev, E. Kh. Baksht, D. V. Beloplotov, A. G. Burachenko et al., “Spectral and amplitude-time characteristics of crystals excited by a runaway electron beam,” Matter Radiat. Extremes 4, 037401 (2019).10.1063/1.5096563
[17]	V. F. Tarasenko, E. Kh. Baksht, D. V. Beloplotov, A. G. Burachenko, M. V. Erofeev et al., “On the influence of electron energy on characteristics of the Cherenkov radiation and cathodoluminescence,” Russ. Phys. J. 62, 1181–1190 (2019).10.1007/s11182-019-01833-6
[18]	V. F. Tarasenko, E. Kh. Baksht, D. V. Beloplotov, A. G. Burachenko, and M. I. Lomaev, “Cherenkov radiation and cathodoluminescence in sapphire, quartz, and diamond under the excitation of an electron beam,” Jpn. J. Appl. Phys., Part 1 59, SHHD01 (2020).10.35848/1347-4065/ab7475
[19]	E. Kh. Baksht, A. V. Vukolov, M. V. Erofeev, G. A. Naumenko, A. P. Potylitsyn et al., “Cherenkov radiation in the visible and ultraviolet spectral ranges from 6-MeV electrons passing through a quartz plate,” JETP Lett. 109, 564–568 (2019).10.1134/s0021364019090078
[20]	A. V. Vukolov, A. I. Novokshonov, A. P. Potylitsyn, and S. R. Uglov, “Diagnostics of electron beam based on Cherenkov radiation in an optical fiber,” Russ. Phys. J. 59, 1681–1685 (2016).10.1007/s11182-017-0960-7
[21]
[22]
[23]
[24]
[25]	V. P. Zrelov and J. Ružička, “Analysis of Tamm’s problem on charge radiation at its uniform motion over a finite trajectory,” Czech. J. Phys. 39, 368–383 (1989).10.1007/bf01597796
[26]	J. Ružička and V. P. Zrelov, “Optical transition radiation in a transparent medium and its relation to the Vavilov-Cherenkov radiation,” Czech. J. Phys. 43, 551–567 (1993).10.1007/BF01589740
[27]	V. N. Tsytovich and O. Oiringel, Polarization Bremsstrahlung (Plenum Press, New York, 1994).
[28]	V. F. Tarasenko, E. Kh. Baksht, A. G. Burachenko, D. V. Beloplotov, and A. V. Kozyrev, “Luminescence of polymethyl methacrylate excited by a runaway electron beam and by a KrCl excilamp,” IEEE Trans. Plasma Sci. 45, 76–84 (2017).10.1109/tps.2016.2637570
