Ultrahigh strength of cage-like polymeric nitrogen surpassing diamond under high pressure

Liang Hui; Wang Di; Xu Rui; Chen Hao; Zhou Dan; Zhang Yunwei; Li Quan

doi:10.1063/5.0296196

Volume 11 Issue 1

Jan. 2026

Turn off MathJax

Article Contents

Article Navigation > Matter and Radiation at Extremes > 2026 > 11(1): 017802

Liang Hui, Wang Di, Xu Rui, Chen Hao, Zhou Dan, Zhang Yunwei, Li Quan. Ultrahigh strength of cage-like polymeric nitrogen surpassing diamond under high pressure[J]. Matter and Radiation at Extremes, 2026, 11(1): 017802. doi: 10.1063/5.0296196

Citation:

Liang Hui, Wang Di, Xu Rui, Chen Hao, Zhou Dan, Zhang Yunwei, Li Quan. Ultrahigh strength of cage-like polymeric nitrogen surpassing diamond under high pressure[J]. Matter and Radiation at Extremes, 2026, 11(1): 017802. doi: 10.1063/5.0296196

Citation:

PDF( 7626 KB)

Ultrahigh strength of cage-like polymeric nitrogen surpassing diamond under high pressure

doi: 10.1063/5.0296196

Liang Hui^{1, 2
,},
Wang Di^1
,,
Xu Rui^{1, 2},
Chen Hao³,
Zhou Dan^{3
,
,},
Zhang Yunwei^{2, 4
,
,
,},
Li Quan^{1
,
,
,}

1.
State Key Laboratory of High Pressure and Superhard Materials, and Key Laboratory of Material Simulation Methods and Software of Ministry of Education, College of Physics, Jilin University, Changchun 130012, China
2.
School of Physics, Sun Yat-Sen University, Guangzhou 510275, China
3.
School of Physics, Changchun University of Science and Technology, Changchun 130022, China
4.
Guangdong Provincial Key Laboratory of Magnetoelectric Physics and Devices, Sun Yat-sen University, Guangzhou 510275, China

More Information

Corresponding author: a)Authors to whom correspondence should be addressed: zhoudan@cust.edu.cn; zhangyunw@mail.sysu.edu.cn; and liquan777@jlu.edu.cn
Received Date: 2025-08-13
Accepted Date: 2025-10-16

Available Online: 2026-01-01

Publish Date: 2026-01-01

Abstract

Abstract

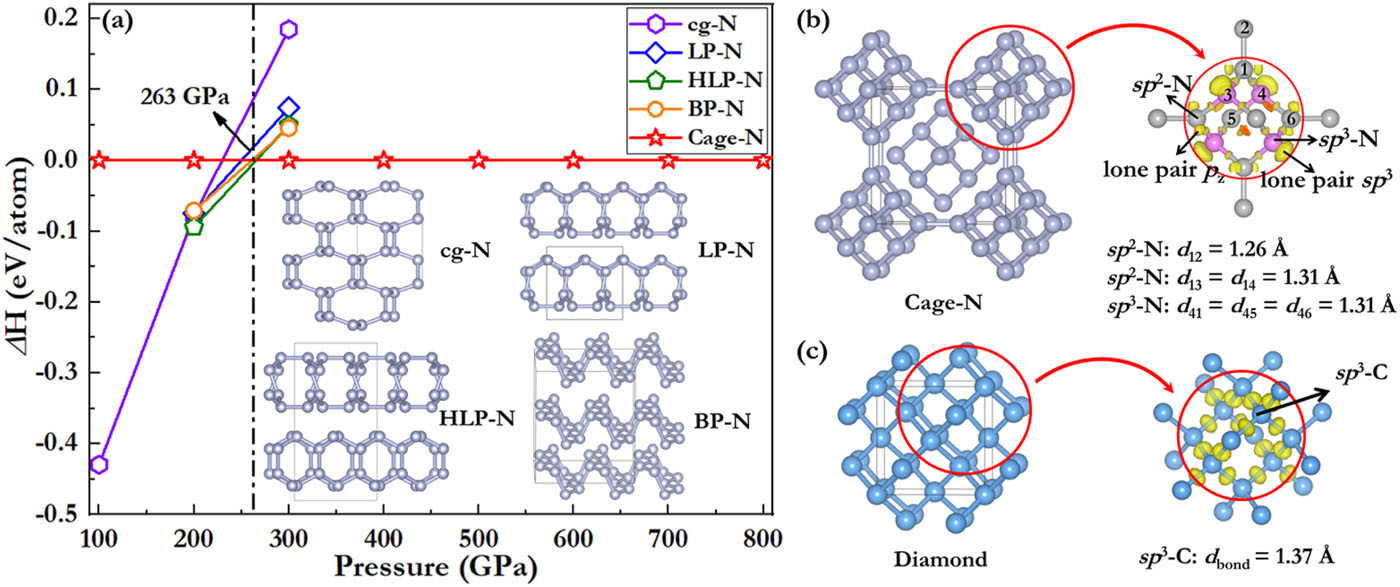

We report first-principles predictions of a cage-like polymeric nitrogen phase (cage-N) composed of interlocked N₁₀ clusters stabilized by mixed sp²/sp³ hybridization. Under high pressure, cage-N exhibits exceptional mechanical performance, including an ideal compressive strength of 343 GPa at a pressure of 300 GPa, ∼33% higher than that of diamond. This ultrahigh strength arises from the synergistic interplay between its three-dimensional covalent framework and hybridized bonding topology, which enables isotropic stress accommodation and dynamic electronic rearrangement. These results establish cage-N as a promising non-carbon ultrahard material and provide a bonding-driven route toward designing superhard frameworks under extreme conditions.

Conflict of Interest
The authors have no conflicts to disclose.
Hui Liang: Formal analysis (equal); Investigation (equal); Writing – original draft (equal). Di Wang: Formal analysis (equal); Investigation (equal); Writing – original draft (equal). Rui Xu: Investigation (equal). Hao Chen: Investigation (equal). Dan Zhou: Conceptualization (equal); Supervision (equal); Writing – review & editing (equal). Yunwei Zhang: Conceptualization (equal); Supervision (equal); Writing – review & editing (equal). Quan Li: Conceptualization (equal); Supervision (equal); Writing – review & editing (equal).
Author Contributions
The data that support the findings of this study are available from the corresponding authors upon reasonable request.

FullText(HTML)

References(57)

References

[1]	P. Ying, B. Li, M. Ma, Y. Gao, R. Sun et al., “Enhancing the hardness of diamond through twin refinement and interlocked twins,” Nat. Synth. 4, 391–398 (2025).10.1038/s44160-024-00707-1
[2]	C. Chi, H. Ding, X.-F. Zhou, and X. Dong, “Curved stacking pathways along the γ-surface of diamond,” Phys. Rev. B 111, 144102 (2025).10.1103/physrevb.111.144102
[3]	Z. Su, X. Weng, X. Shao, K. Tong, Y. Liu et al., “Coherent interface migration toughens diamond,” Adv. Funct. Mater. 35, 2409122 (2025).10.1002/adfm.202409122
[4]	Z. Wang, X. Luo, Q. Wang, H. Ge, P. Gao et al., “Advances in high-pressure materials discovery enabled by machine learning,” Matter Radiat. Extremes 10, 033801 (2025).10.1063/5.0255385
[5]	K. Tong, X. Zhang, Z. Li, Y. Wang, K. Luo et al., “Structural transition and migration of incoherent twin boundary in diamond,” Nature 626, 79–85 (2024).10.1038/s41586-023-06908-6
[6]	Z. Su, Y. Duan, Y. Tian, S. Guo, P. Li et al., “Mechanical quenching phenomenon in diamond,” Proc. Natl. Acad. Sci. 121, e2319663121 (2024).10.1073/pnas.2319663121
[7]	L. Zhao, Y. Chang, S. Qiu, H. Liu, J. Zhao et al., “High mechanical energy storage capacity of ultranarrow carbon nanowires bundles by machine learning driving predictions,” Adv. Energy Sustainability Res. 4, 2300112 (2023).10.1002/aesr.202300112
[8]	Y. Yue, Y. Gao, W. Hu, B. Xu, J. Wang et al., “Hierarchically structured diamond composite with exceptional toughness,” Nature 582, 370–374 (2020).10.1038/s41586-020-2361-2
[9]	A. Nie, Z. Zhao, B. Xu, and Y. Tian, “Microstructure engineering in diamond-based materials,” Nat. Mater. 24, 1172 (2025).10.1038/s41563-025-02168-z
[10]	P. Li, J. Li, Q. Feng, T. Jin, Y. Bu et al., “Unveiling high ductility in boron carbide crystal at room temperature,” Sci. Adv. 11, eadr4648 (2025).10.1126/sciadv.adr4648
[11]	J. Li, K. Luo, and Q. An, “Unveiling the inverse Hall-Petch behavior and failure mechanism in nanocrystalline high-entropy carbides,” Phys. Rev. Mater. 9, 053604 (2025).10.1103/physrevmaterials.9.053604
[12]	Z. Ye, J. Park, Y. Zhou, R. D. Montano, T. Pandey et al., “Anomalous thermal transport in compressed carbon phases,” Phys. Rev. Lett. 133, 206301 (2024).10.1103/physrevlett.133.206301
[13]	M.-X. Huang, C. Fan, B. Xu, J. Hou, X. Shao et al., “Hard copper boride with exceptional conductivity,” Phys. Rev. Lett. 133, 136301 (2024).10.1103/physrevlett.133.136301
[14]	J. Shi, Z. Liang, J. Wang, S. Pan, C. Ding et al., “Double-shock compression pathways from diamond to BC8 carbon,” Phys. Rev. Lett. 131, 146101 (2023).10.1103/physrevlett.131.146101
[15]	J. Li, K. Luo, and Q. An, “Activating mobile dislocation in boron carbide at room temperature via Al doping,” Phys. Rev. Lett. 130, 116104 (2023).10.1103/physrevlett.130.116104
[16]	J. Li, Q. An, and L. Liu, “Local amorphization in boron carbide at finite temperature: Strategies toward improved ductility,” Phys. Rev. B 104, 134105 (2021).10.1103/physrevb.104.134105
[17]	M. Koenig, D. Crandall, H. K. Mao, K. Lan, D. H. H. Hoffmann et al., “Matter and radiation at extremes: Prospects and impacts,” Matter Radiat. Extremes 6, 013002 (2021).10.1063/5.0041011
[18]	S. Zare Chavoshi, P. S. Branicio, and Q. An, “Transition between Hall-Petch and inverse Hall-Petch behavior in nanocrystalline silicon carbide,” Phys. Rev. Mater. 5, 073606 (2021).10.1103/physrevmaterials.5.073606
[19]	H. Liang, H. Li, Q. Li, and C. Chen, “Toughening a superstrong carbon crystal: Sequential bond-breaking mechanisms,” Phys. Rev. B 102, 134105 (2020).10.1103/physrevb.102.134105
[20]	Q. Li, Y. Ma, A. R. Oganov, H. Wang, H. Wang et al., “Superhard monoclinic polymorph of carbon,” Phys. Rev. Lett. 102, 175506 (2009).10.1103/physrevlett.102.175506
[21]	C. Mailhiot, L. H. Yang, and A. K. McMahan, “Polymeric nitrogen,” Phys. Rev. B 46, 14419 (1992).10.1103/physrevb.46.14419
[22]	M. I. Eremets, A. G. Gavriliuk, I. A. Trojan, D. A. Dzivenko, and R. Boehler, “Single-bonded cubic form of nitrogen,” Nat. Mater. 3, 558–563 (2004).10.1038/nmat1146
[23]	S. Jiang, N. Holtgrewe, S. S. Lobanov, F. Su, M. F. Mahmood et al., “Metallization and molecular dissociation of dense fluid nitrogen,” Nat. Commun. 9, 2624 (2018).10.1038/s41467-018-05011-z
[24]	J. Sun, M. Martinez-Canales, D. D. Klug, C. J. Pickard, and R. J. Needs, “Stable all-nitrogen metallic salt at terapascal pressures,” Phys. Rev. Lett. 111, 175502 (2013).10.1103/physrevlett.111.175502
[25]	Y. Ma, A. R. Oganov, Z. Li, Y. Xie, and J. Kotakoski, “Novel high pressure structures of polymeric nitrogen,” Phys. Rev. Lett. 102, 065501 (2009).10.1103/physrevlett.102.065501
[26]	C. J. Pickard and R. J. Needs, “High-pressure phases of nitrogen,” Phys. Rev. Lett. 102, 125702 (2009).10.1103/physrevlett.102.125702
[27]	G. Chen, C. Zhang, Y. Zhu, B. Cao, J. Zhang et al., “Realized stable BP-N at ambient pressure by phosphorus doping,” Matter Radiat. Extremes 10, 015801 (2025).10.1063/5.0239841
[28]	X. Wang, Y. Wang, M. Miao, X. Zhong, J. Lv et al., “Cage like diamondoid nitrogen at high pressures,” Phys. Rev. Lett. 109, 175502 (2012).10.1103/physrevlett.109.175502
[29]	C. Fan, S. Liu, J. Liu, B. Wu, Q. Tang et al., “Evidence for a high-pressure isostructural transition in nitrogen,” Chin. Phys. Lett. 39, 026401 (2022).10.1088/0256-307x/39/2/026401
[30]	J. Yuan, K. Xia, C. Ding, X. Wang, Q. Lu et al., “High-energy-density metal nitrides with armchair chains,” Matter Radiat. Extremes 7, 038402 (2022).10.1063/5.0087168
[31]	Y. Wang, Z. Li, S. Niu, W. Yi, S. Liu et al., “Cerium-promoted conversion of dinitrogen into high-energy-density material CeN6 under moderate pressure,” Matter Radiat. Extremes 8, 038401 (2023).10.1063/5.0136443
[32]	D. Tomasino, M. Kim, J. Smith, and C. S. Yoo, “Pressure-induced symmetry-lowering transition in dense nitrogen to layered polymeric nitrogen (LP-N) with colossal Raman intensity,” Phys. Rev. Lett. 113, 205502 (2014).10.1103/physrevlett.113.205502
[33]	D. Laniel, G. Geneste, G. Weck, M. Mezouar, and P. Loubeyre, “Hexagonal layered polymeric nitrogen phase synthesized near 250 GPa,” Phys. Rev. Lett. 122, 066001 (2019).10.1103/physrevlett.122.066001
[34]	D. Laniel, B. Winkler, T. Fedotenko, A. Pakhomova, S. Chariton et al., “High-pressure polymeric nitrogen allotrope with the black phosphorus structure,” Phys. Rev. Lett. 124, 216001 (2020).10.1103/physrevlett.124.216001
[35]	B. Wu, L. Lei, F. Zhang, Q. Tang, S. Liu et al., “Pressure-induced disordering of site occupation in iron–nickel nitrides,” Matter Radiat. Extremes 6, 038401 (2021).10.1063/5.0040041
[36]	J. P. Perdew, K. Burke, and M. Ernzerhof, “Generalized gradient approximation made simple,” Phys. Rev. Lett. 77, 3865 (1996).10.1103/physrevlett.77.3865
[37]	G. Kresse and J. Furthmüller, “Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set,” Phys. Rev. B 54, 11169 (1996).10.1103/PhysRevB.54.11169
[38]	H. J. Monkhorst and J. D. Pack, “Special points for Brillouin-zone integrations,” Phys. Rev. B 13, 5188 (1976).10.1103/physrevb.13.5188
[39]	R. Hill, “The elastic behaviour of a crystalline aggregate,” Proc. Phys. Soc. A 65, 349 (1952).10.1088/0370-1298/65/5/307
[40]	D. Roundy, C. R. Krenn, M. L. Cohen, and J. W. Morris, Jr., “Ideal shear strengths of fcc aluminum and copper,” Phys. Rev. Lett. 82, 2713 (1999).10.1103/physrevlett.82.2713
[41]	J. W. Morris, Jr. and C. R. Krenn, “The internal stability of an elastic solid,” Philos. Mag. A 80, 2827 (2000).10.1080/01418610008223897
[42]	Y. Zhang, H. Sun, and C. Chen, “Superhard cubic BC2N compared to diamond,” Phys. Rev. Lett. 93, 195504 (2004).10.1103/physrevlett.93.195504
[43]	Y. Zhang, H. Sun, and C. Chen, “Structural deformation, strength, and instability of cubic BN compared to diamond: A first-principles study,” Phys. Rev. B 73, 144115 (2006).10.1103/physrevb.73.144115
[44]	B. Li, H. Sun, and C. Chen, “Extreme mechanics of probing the ultimate strength of nanotwinned diamond,” Phys. Rev. Lett. 117, 116103 (2016).10.1103/physrevlett.117.116103
[45]	X. Song, C. Liu, Q. Li, R. J. Hemley, Y. Ma et al., “Stress-induced high-Tc superconductivity in solid molecular hydrogen,” Proc. Natl. Acad. Sci. U. S. A 119, e2122691119 (2022).10.1073/pnas.2122691119
[46]	H. Liang, N. Min, D. Wang, X. Song, P. Gao et al., “Unexpected strength of noble gas solids in diamond anvil cells,” J. Phys. Chem. C 128, 4839–4847 (2024).10.1021/acs.jpcc.4c00909
[47]	C. Liu, X. Song, Q. Li, Y. Ma, and C. Chen, “Superconductivity in compression-shear deformed diamond,” Phys. Rev. Lett. 124, 147001 (2020).10.1103/physrevlett.124.147001
[48]	C. Liu, X. Song, Q. Li, Y. Ma, and C. Chen, “Smooth flow in diamond: Atomistic ductility and electronic conductivity,” Phys. Rev. Lett. 123, 195504 (2019).10.1103/physrevlett.123.195504
[49]	T. H. Kim, H. Zhao, B. A. Jensen, L. Ke, and L. Zhou, “Topological defect mediated helical phase reorientation by uniaxial stress,” Phys. Rev. Lett. 134, 136704 (2025).10.1103/physrevlett.134.136704
[50]	T. Li, Y. Yang, S. Deng, F. Zhu, T. Zhang et al., “Room-temperature perovskite ferromagnetic insulator via three-dimensional tensile strain,” Phys. Rev. Lett. 134, 016702 (2025).10.1103/physrevlett.134.016702
[51]	M. Xia, L. Zhao, Y. Chang, H. Liu, G. Zhang et al., “Strain controlled thermal regulator realized in two-dimensional black and blue phosphorene in-plane heterostructure,” Phys. Rev. B 109, 104106 (2024).10.1103/physrevb.109.104106
[52]	J. Gao, G. Zhang, B. I. Yakobson, and Y.-W. Zhang, “Kinetic theory for the formation of diamond nanothreads with desired configurations: A strain–temperature controlled phase diagram,” Nanoscale 10, 9664–9672 (2018).10.1039/c8nr00308d
[53]	A. R. Oganov, J. Chen, C. Gatti, Y. Ma, Y. Ma et al., “Ionic high-pressure form of elemental boron,” Nature 457, 863 (2009).10.1038/nature07736
[54]	E. Y. Zarechnaya, L. Dubrovinsky, N. Dubrovinskaia, Y. Filinchuk, D. Chernyshov et al., “Superhard semiconducting optically transparent high pressure phase of boron,” Phys. Rev. Lett. 102, 185501 (2009).10.1103/physrevlett.102.185501
[55]	W. Zhou, H. Sun, and C. Chen, “Soft bond-deformation paths in superhard γ-boron,” Phys. Rev. Lett. 105, 215503 (2010).10.1103/physrevlett.105.215503
[56]	H. Liang, Q. Li, and C. Chen, “Atomistic mechanisms for contrasting stress–strain relations of B13CN and B13C2,” J. Phys. Chem. Lett. 11, 10454 (2020).10.1021/acs.jpclett.0c03143
[57]	H. Liang, D. Wang, X. Song, Q. Guo, and Q. Li, “Structural and stress response of nanotwinned B13CN under large strains,” J. Phys. Chem. Lett. 14, 10475–10481 (2023).10.1021/acs.jpclett.3c02890
