Characteristics and mechanisms for a new damage region near the loading side of polycrystalline aluminum with helium bubbles under strongly decaying shock waves

Zhou Tingting; Zhao Fuqi; He Anmin; Wang Pei

doi:10.1063/5.0289560

Volume 11 Issue 1

Jan. 2026

Turn off MathJax

Article Contents

Article Navigation > Matter and Radiation at Extremes > 2026 > 11(1): 017605

Zhou Tingting, Zhao Fuqi, He Anmin, Wang Pei. Characteristics and mechanisms for a new damage region near the loading side of polycrystalline aluminum with helium bubbles under strongly decaying shock waves[J]. Matter and Radiation at Extremes, 2026, 11(1): 017605. doi: 10.1063/5.0289560

Citation:

Zhou Tingting, Zhao Fuqi, He Anmin, Wang Pei. Characteristics and mechanisms for a new damage region near the loading side of polycrystalline aluminum with helium bubbles under strongly decaying shock waves[J]. Matter and Radiation at Extremes, 2026, 11(1): 017605. doi: 10.1063/5.0289560

Citation:

Zhou Tingting, Zhao Fuqi, He Anmin, Wang Pei. Characteristics and mechanisms for a new damage region near the loading side of polycrystalline aluminum with helium bubbles under strongly decaying shock waves[J]. Matter and Radiation at Extremes, 2026, 11(1): 017605. doi: 10.1063/5.0289560

PDF( 10826 KB)

Characteristics and mechanisms for a new damage region near the loading side of polycrystalline aluminum with helium bubbles under strongly decaying shock waves

doi: 10.1063/5.0289560

Institute of Applied Physics and Computational Mathematics, Beijing 100094, China

More Information

Corresponding author: a)Authors to whom correspondence should be addressed: zhou_tingting@iapcm.ac.cn and wangpei@iapcm.ac.cn
Received Date: 2025-07-08
Accepted Date: 2025-11-10

Available Online: 2026-01-01

Publish Date: 2026-01-01

Abstract

Abstract

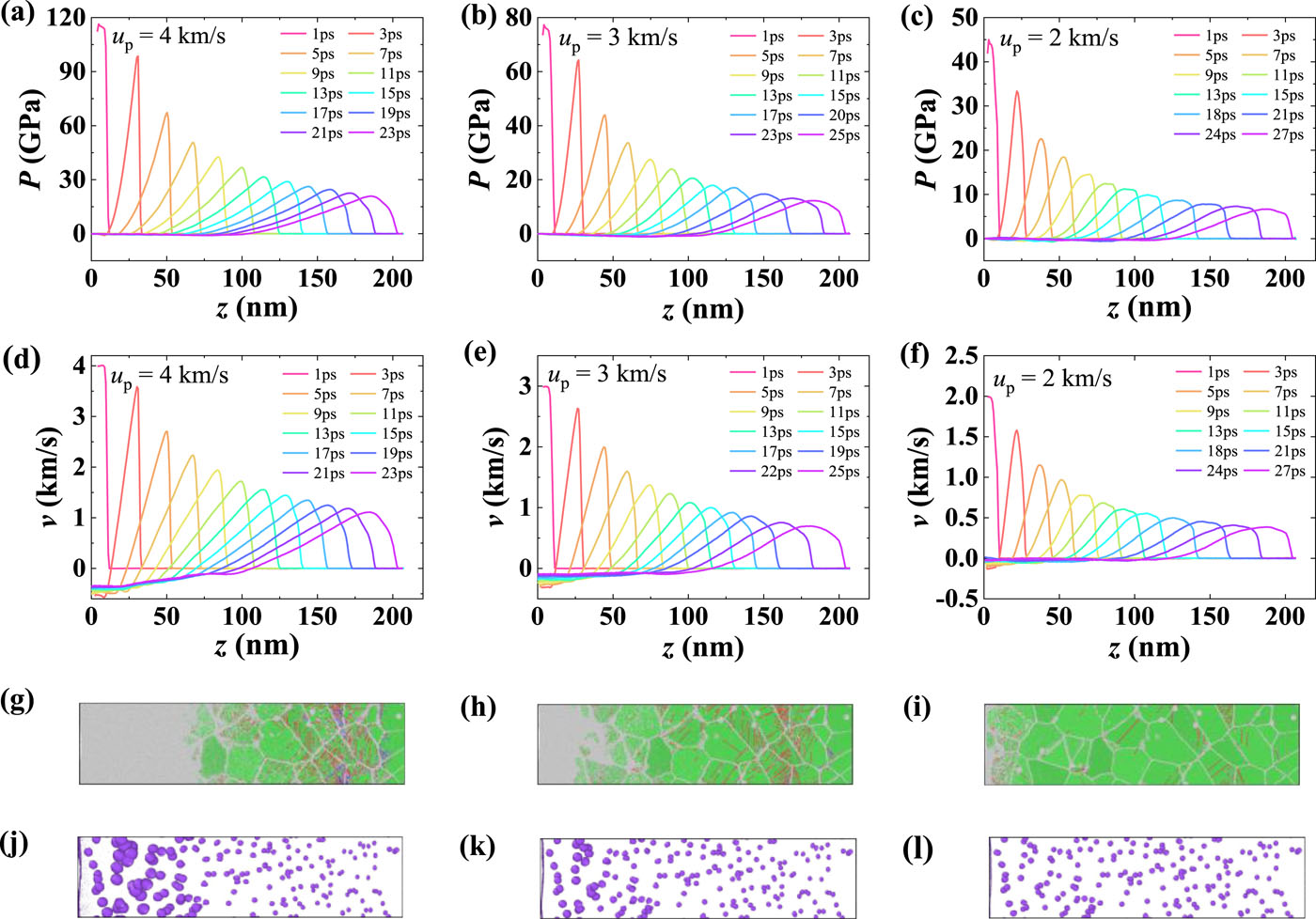

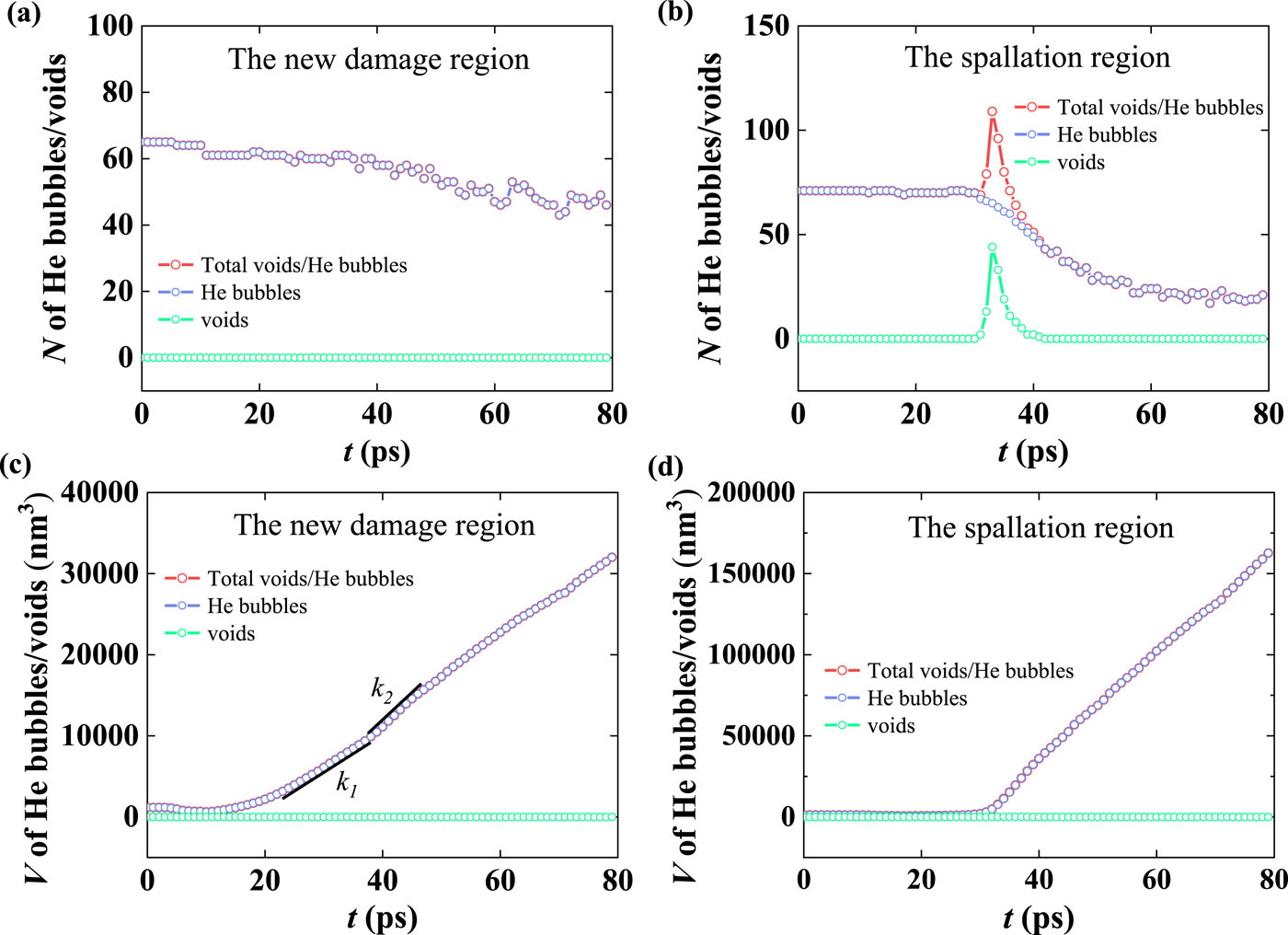

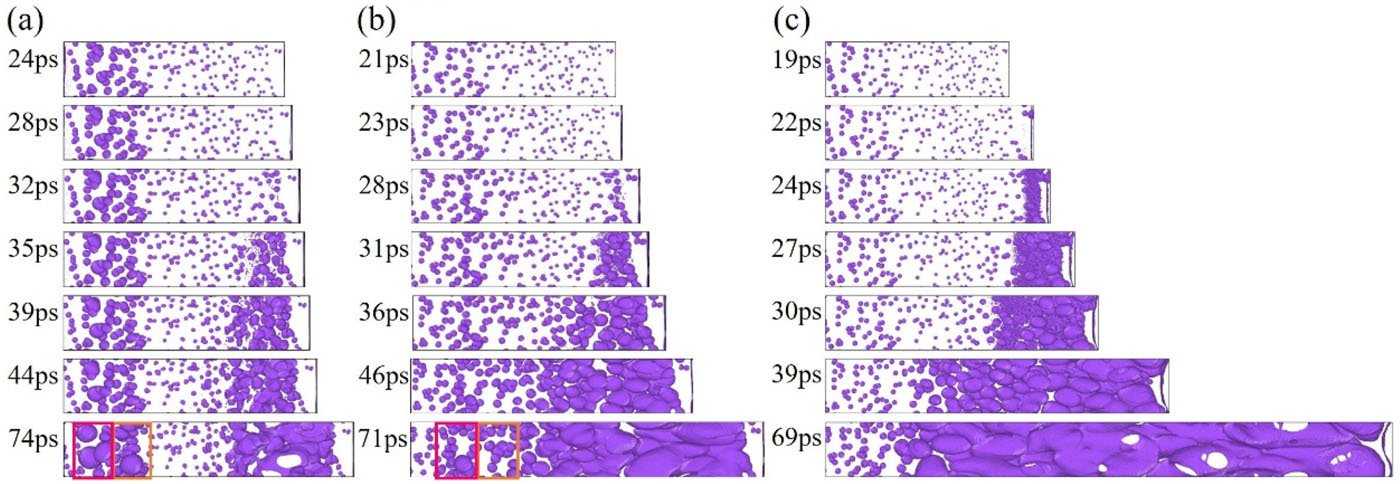

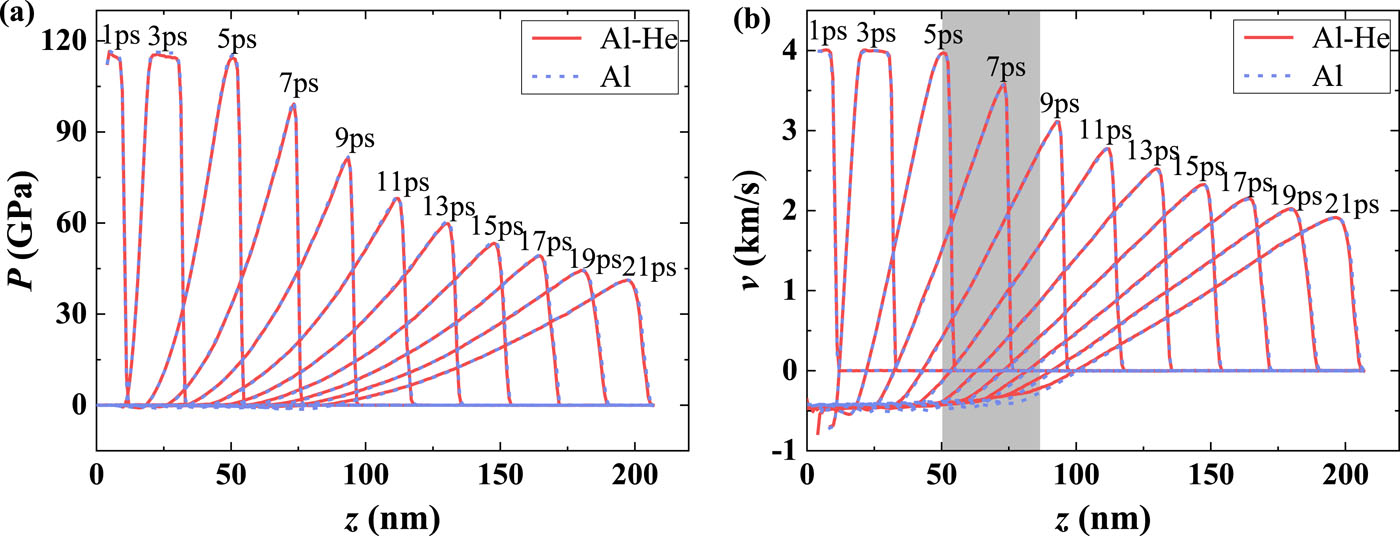

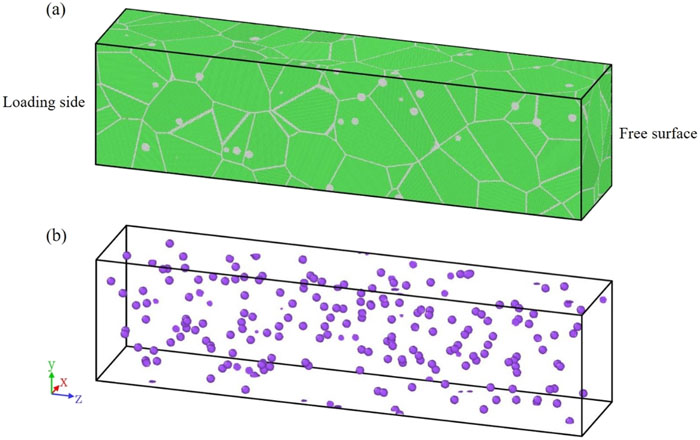

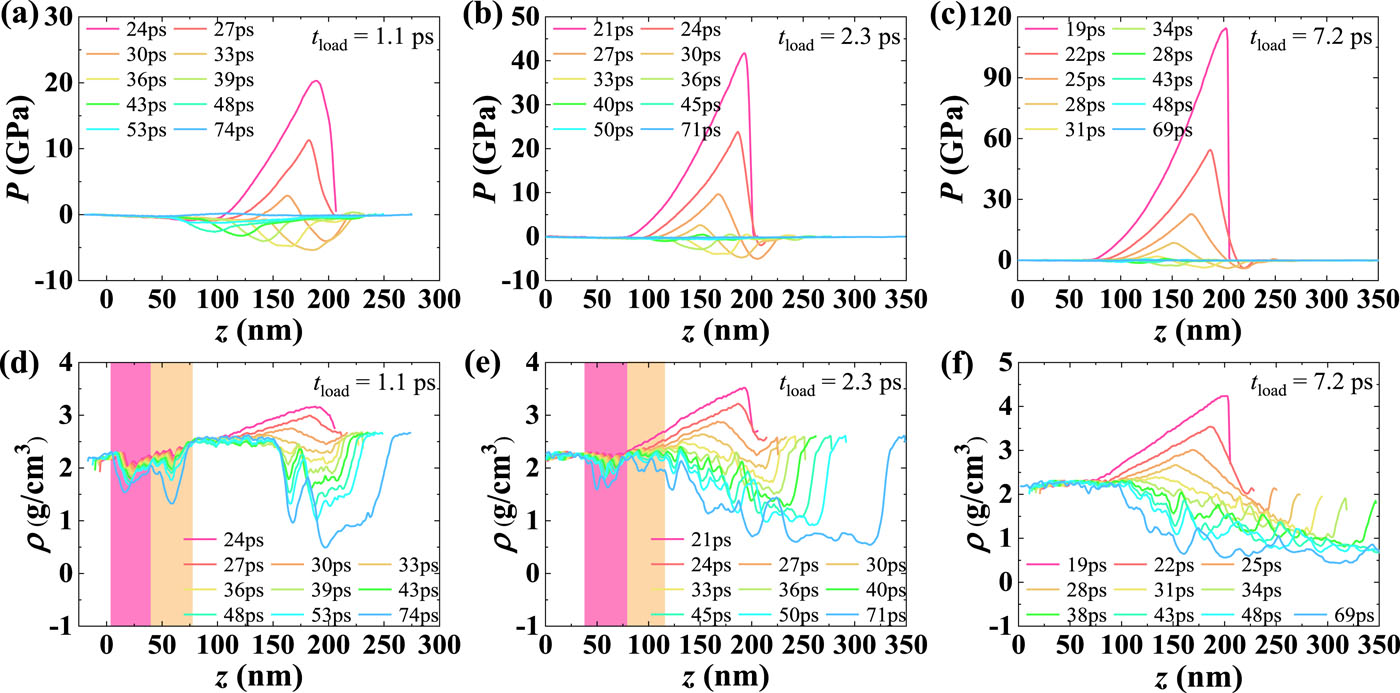

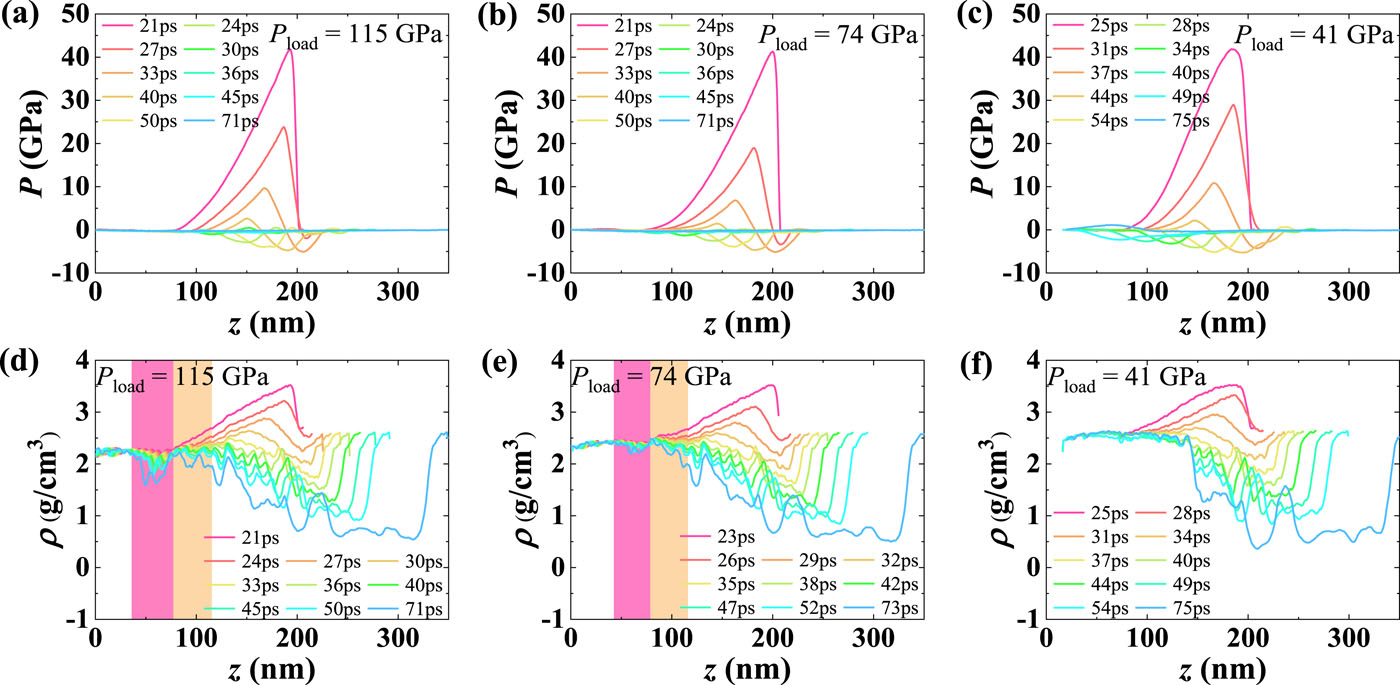

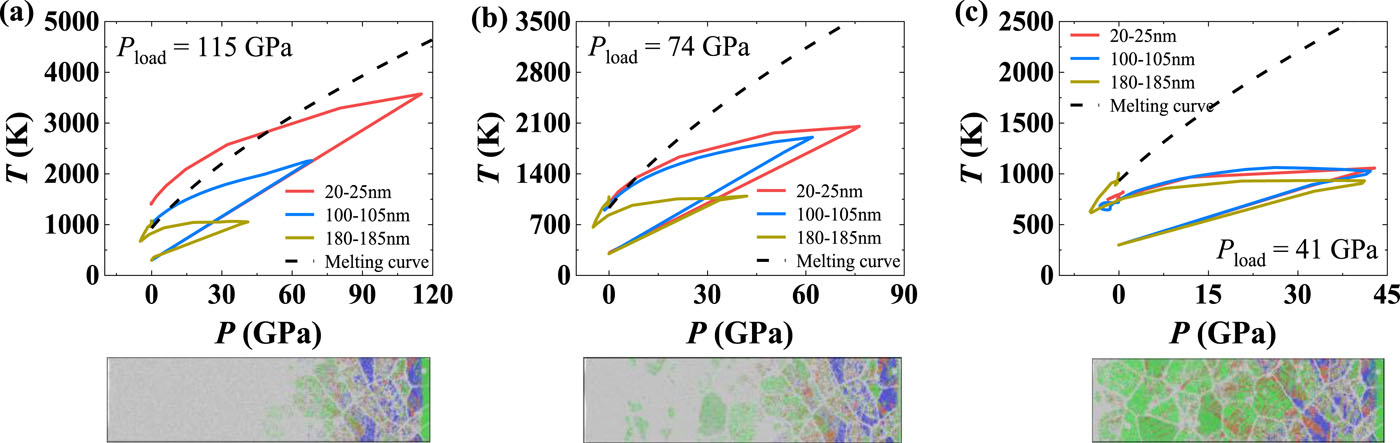

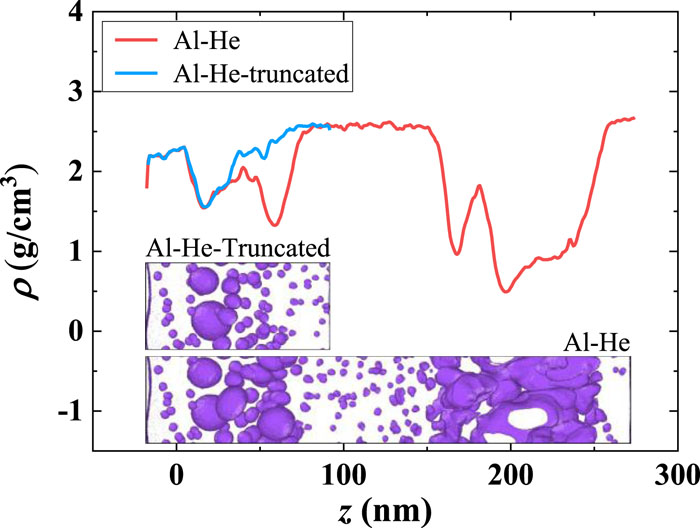

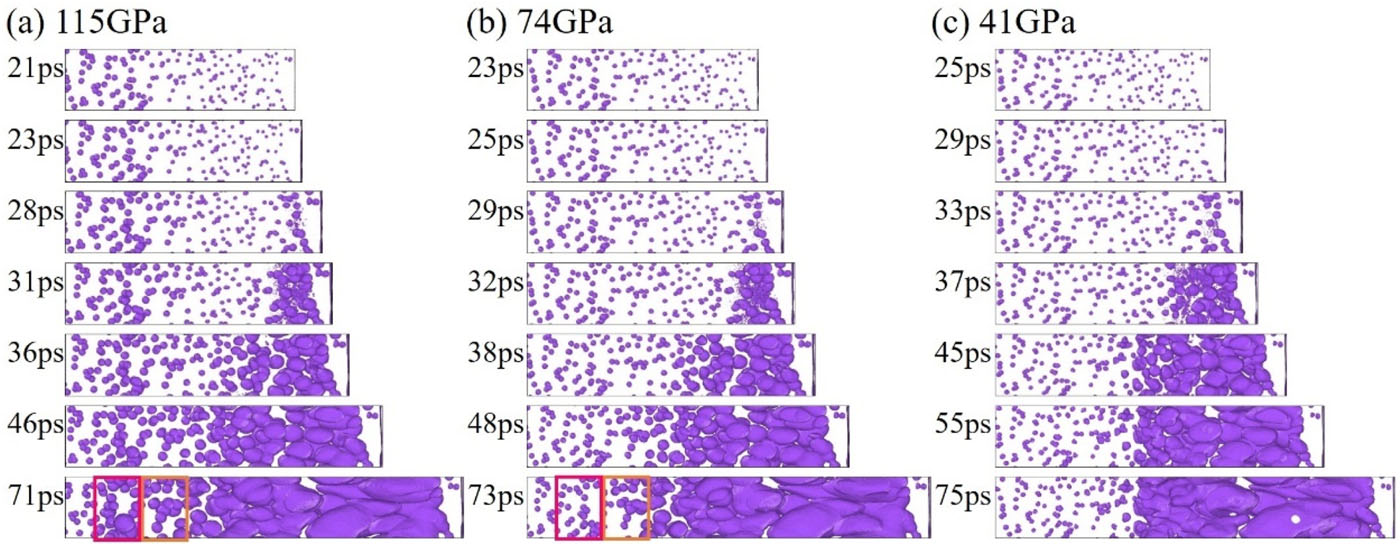

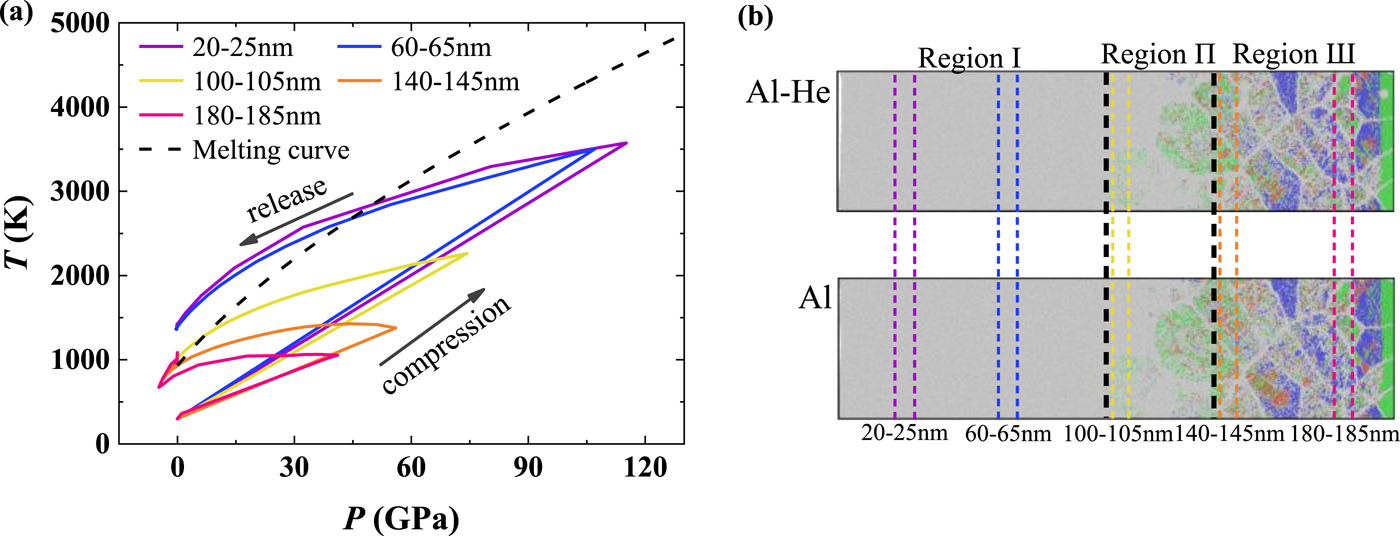

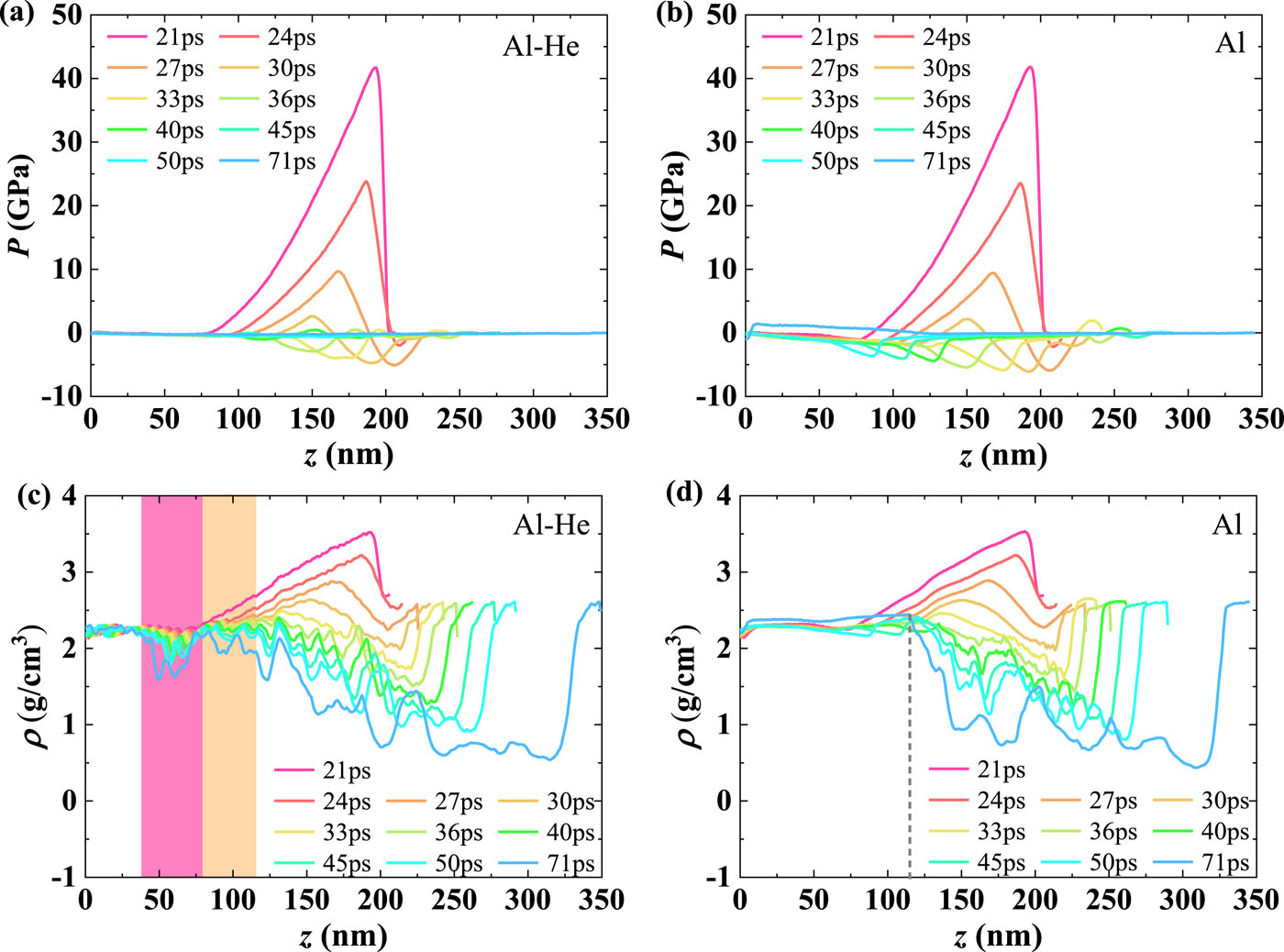

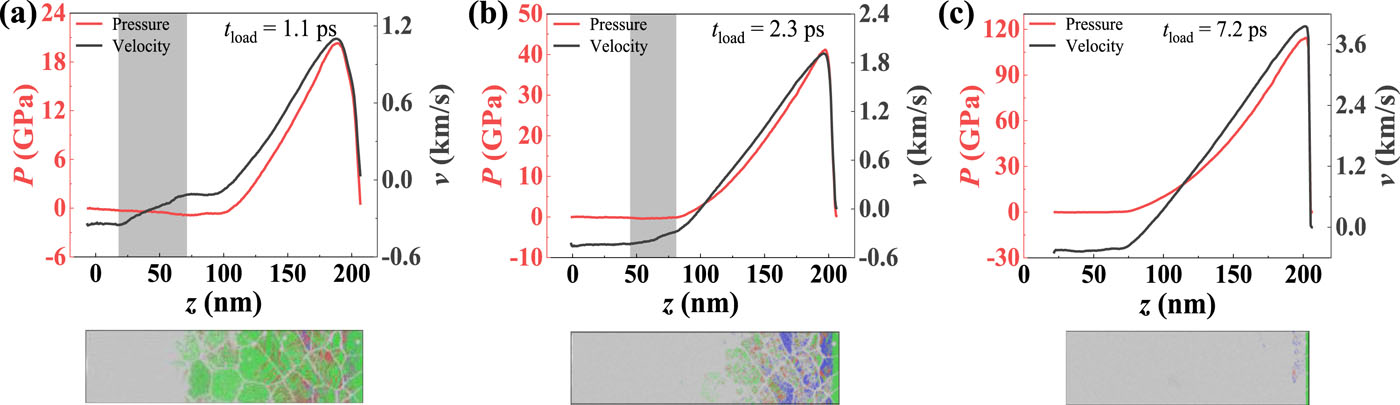

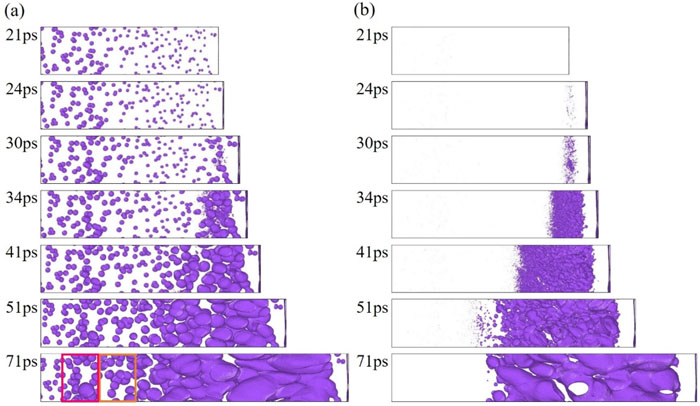

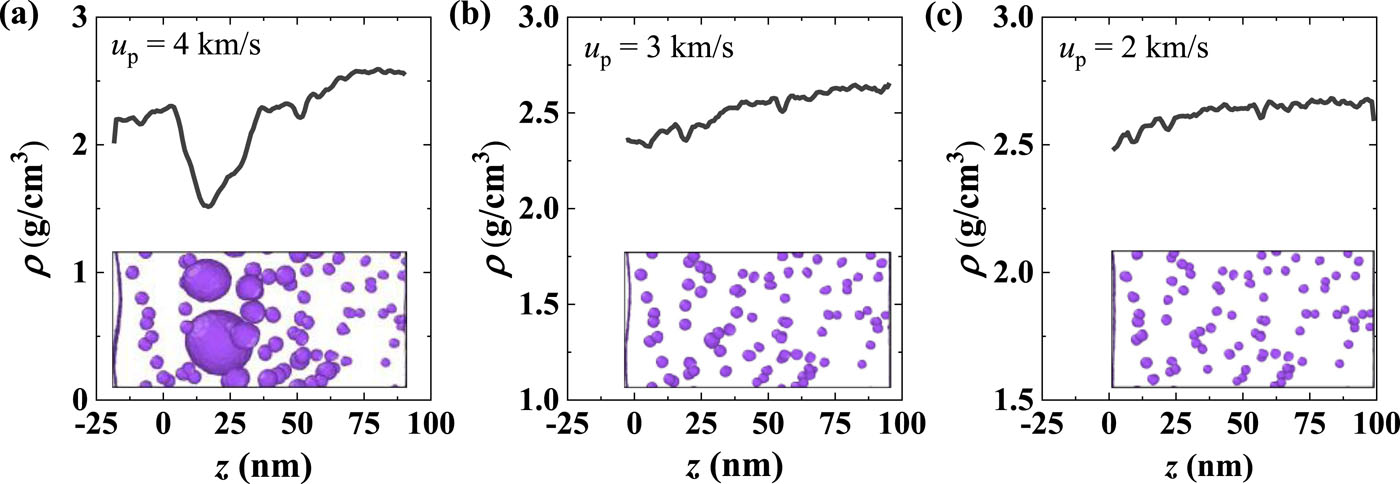

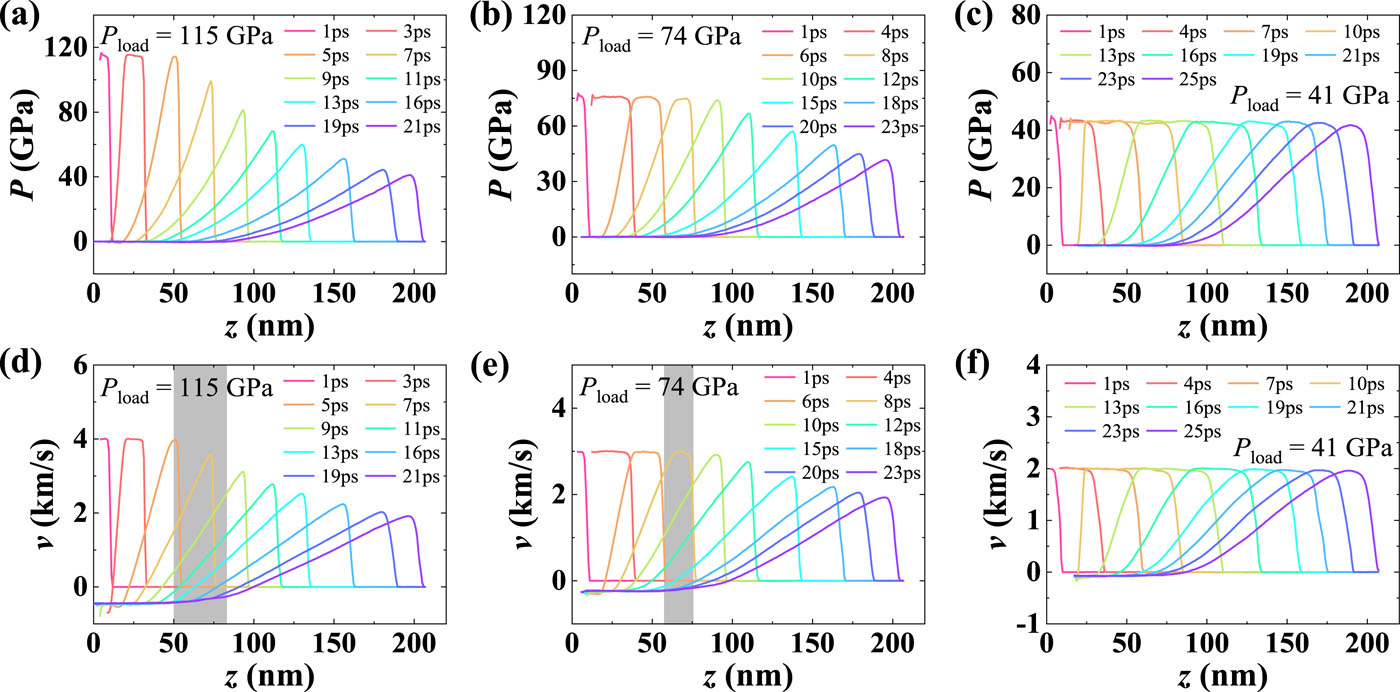

The damage evolution of polycrystalline Al with helium (He) bubbles under strongly decaying shock waves is studied by molecular dynamics simulations. A new damage region is observed near the loading side of the sample, and the evolution characteristics and underlying mechanisms are elucidated. The development of damage in the new damage region begins after complete unloading of the incident shock wave and is further enhanced when the tensile stress arrives later. The damage evolution is completely controlled by the expansion–merging of He bubbles, without nucleation–growth of voids. This new damage region can be divided into two sections, each of which exhibits a unique dominant mechanism. The damage in the section closer to the loading side is due to the reverse velocity gradient formed after complete unloading of the incident shock wave, depending on the rate of decrease and the amplitude of the initial peak pressure. A high initial peak pressure that can lead to melting of material near the loading side is a necessary condition for the formation of the new damage region, since a significant reverse velocity gradient can only be established if melting occurs. The dominant mechanism in the section distant from the loading side is the action of tensile stress, associated with the profile of the incident shock wave upon reaching the free surface, which determines the material phase near the free surface. Moreover, the presence of He bubbles is another critical factor for formation of the new damage region, which does not occur in pure Al samples.

Conflict of Interest
The authors have no conflicts to disclose.
Tingting Zhou: Conceptualization (lead); Formal analysis (equal); Funding acquisition (lead); Investigation (equal); Methodology (equal); Software (equal); Visualization (equal); Writing – original draft (lead); Writing – review & editing (equal). Fuqi Zhao: Data curation (equal); Validation (equal); Visualization (equal); Writing – review & editing (equal). Anmin He: Data curation (equal); Validation (equal); Writing – review & editing (equal). Pei Wang: Project administration (equal); Supervision (equal).
Author Contributions
The data that support the findings of this study are available from the corresponding authors upon reasonable request.

FullText(HTML)

References(42)

References

[1]	S. J. Zinkle and G. S. Was, “Materials challenges in nuclear energy,” Acta Mater. 61, 735–758 (2013).10.1016/j.actamat.2012.11.004
[2]	S. J. Zinkle and L. L. Snead, “Designing radiation resistance in materials for fusion energy,” Annu. Rev. Mater. Res. 44, 241–267 (2014).10.1146/annurev-matsci-070813-113627
[3]	H. Ullmaier, “Radiation damage in metallic materials,” MRS Bull. 22, 14–21 (1997).10.1557/s088376940003298x
[4]	H. Trinkaus and B. N. Singh, “Helium accumulation in metals during irradiation-where do we stand?,” J. Nucl. Mater. 323, 229–242 (2003).10.1016/j.jnucmat.2003.09.001
[5]	A. J. Schwartz, M. A. Wall, T. G. Zocco, and W. G. Wolfer, “Characterization and modeling of helium bubbles in self-irradiated plutonium alloys,” Philos. Mag. 85, 479–488 (2005).10.1080/02678370412331320026
[6]	Y. Katoh, M. Ando, and A. Kohyama, “Radiation and helium effects on microstructures, nano-indentation properties and deformation behavior in ferrous alloys,” J. Nucl. Mater. 323, 251–262 (2003).10.1016/j.jnucmat.2003.08.007
[7]	B. W. Chung, S. R. Thompson, K. E. Lema, D. S. Hiromoto, and B. B. Ebbinghaus, “Evolving density and static mechanical properties in plutonium from self-irradiation,” J. Nucl. Mater. 385, 91–94 (2009).10.1016/j.jnucmat.2008.09.031
[8]	Y. N. Osetsky and R. E. Stoller, “Atomic-scale mechanisms of helium bubble hardening in iron,” J. Nucl. Mater. 465, 448–454 (2015).10.1016/j.jnucmat.2015.05.034
[9]	M. S. Ding, J. P. Du, L. Wan, S. Ogata, L. Tian et al., “Radiation-induced helium nanobubbles enhance ductility in submicron-sized single-crystalline copper,” Nano Lett. 16, 4118–4124 (2016).10.1021/acs.nanolett.6b00864
[10]	C. R. Lear, M. R. Chancey, R. Flanagan, J. G. Gigax, M. T. Hoang et al., “Transition in helium bubble strengthening of copper from quasi-static to dynamic deformation,” Acta Mater. 254, 118987 (2023).10.1016/j.actamat.2023.118987
[11]	S. S. Sharma and A. Parashar, “A review of molecular dynamic simulations to study the effect of helium bubble formation in metal crystals,” Phys. Scr. 99, 102001 (2024).10.1088/1402-4896/ad7200
[12]	B. Glam, S. Eliezer, D. Moreno, L. Perelmutter, M. Sudai et al., “Dynamic fracture and spall in aluminum with helium bubbles,” Int. J. Fract. 163, 217–224 (2010).10.1007/s10704-009-9437-1
[13]	B. Glam, M. Strauss, S. Eliezer, and D. Moreno, “Shock compression and spall formation in aluminum containing helium bubbles at room temperature and near the melting temperature: Experiments and simulations,” Int. J. Impact Eng. 65, 1–12 (2014).10.1016/j.ijimpeng.2013.10.010
[14]	Y. H. Li, J. Z. Chang, L. Zhang, and P. Song, “Experimental investigation of spall damage in pure aluminum with helium bubbles,” Chin. J. High Press Phys. 35, 054101 (2021).
[15]	D. W. Xiao, L. F. He, P. Zhou, D. L. Zou, and H. Shu, “Spall in aluminium with helium bubbles under laser shock loading,” Chin. Phys. Lett. 34, 056201 (2017).10.1088/0256-307x/34/5/056201
[16]	T. T. Zhou, A. M. He, P. Wang, and J. L. Shao, “Spall damage in single crystal Al with helium bubbles under decaying shock loading via molecular dynamics study,” Comput. Mater. Sci. 162, 255–267 (2019).10.1016/j.commatsci.2019.02.019
[17]	T. T. Zhou, A. M. He, and P. Wang, “Dynamic evolution of He bubble and its effects on void nucleation-growth and thermomechanical properties in the spallation of aluminum,” J. Nucl. Mater. 542, 152496 (2020).10.1016/j.jnucmat.2020.152496
[18]	T. Zhou, F. Zhao, H. Zhou, F. Zhang, and P. Wang, “Atomistic simulation and continuum modeling of the dynamic tensile fracture and damage evolution of solid single crystalline Al with He bubble,” Int. J. Mech. Sci. 234, 107681 (2022).10.1016/j.ijmecsci.2022.107681
[19]	D. D. Jiang, T. T. Zhou, P. Wang, and A. M. He, “Dynamic tensile fracture of liquid copper containing helium bubbles,” Int. J. Mech. Sci. 232, 107585 (2022).10.1016/j.ijmecsci.2022.107585
[20]	D. D. Jiang, J. L. Shao, A. M. He, and P. Wang, “Dynamic fracture characteristics of nanocrystalline Al containing He bubbles,” Scr. Mater. 234, 115546 (2023).10.1016/j.scriptamat.2023.115546
[21]	Q. Zhu, J. L. Shao, and P. Wang, “Mechanism of nanoscale helium bubbles influencing dynamic tensile response of polycrystalline copper,” Mech. Mater. 185, 104755 (2023).10.1016/j.mechmat.2023.104755
[22]	A. Kubota, D. B. Reisman, and W. G. Wolfer, “Dynamic strength of metals in shock deformation,” Appl. Phys. Lett. 88, 241924 (2006).10.1063/1.2210799
[23]	B. Li, L. Wang, J. C. E, H. H. Ma, and S. N. Luo, “Shock response of He bubbles in single crystal Cu,” J. Appl. Phys. 116, 213506 (2014).10.1063/1.4903732
[24]	S. Fensin, D. Jones, D. Martinez, C. Lear, and J. Payton, “The role of helium on ejecta production in copper,” Materials 13, 1270 (2020).10.3390/ma13061270
[25]	H. Wu, T. Zhou, and P. Wang, “The rupture and ejection of near-surface helium bubble in single crystal Cu under shock loading,” J. Nucl. Mater. 558, 153404 (2022).10.1016/j.jnucmat.2021.153404
[26]	T. Zhou, W. Zhang, F. Zhao, A. He, and P. Wang, “The spallation characteristics of polycrystalline aluminum with helium bubbles under a wide range of shock stresses,” J. Appl. Phys. 137, 035901 (2025).10.1063/5.0238040
[27]	T. P. Remington, B. A. Remington, E. N. Hahn, and M. A. Meyers, “Deformation and failure in extreme regimes by high-energy pulsed lasers: A review,” Mater. Sci. Eng. A 688, 429 (2017).10.1016/j.msea.2017.01.114
[28]	T. Xi, W. Fan, G. Chu, M. Shui, W.-H. He et al., “Spall behavior of copper under ultra-high strain rate loading,” Acta Phys. Sin. 66, 040202 (2017).10.7498/aps.66.040202
[29]	R. Becker, M. M. LeBlanc, and J. U. Cazamias, “Characterization of recompressed spall in copper gas gun targets,” J. Appl. Phys. 102, 093512 (2007).10.1063/1.2802589
[30]	M. C. Hawkins, S. A. Thomas, S. J. Fensin, D. R. Jones, and R. S. Hixson, “Spall and subsequent recompaction of copper under shock loading,” J. Appl. Phys. 128, 045902 (2020).10.1063/5.0011645
[31]	D. R. Jones, S. J. Fensin, B. M. Morrow, D. T. Martinez, and R. S. Hixson, “Shock recompaction of spall damage,” J. Appl. Phys. 127, 245901 (2020).10.1063/5.0011337
[32]	W. D. Turley, G. D. Stevens, R. S. Hixson, E. K. Cerreta, E. P. Daykin et al., “Explosive-induced shock damage in copper and recompression of the damaged region,” J. Appl. Phys. 120, 085904 (2016).10.1063/1.4962013
[33]	T. Zhou, Q. Zhang, J. Yin, A. He, and P. Wang, “Atomistic understanding of the influences of defects on the spall damage of aluminum under multiple shock loadings,” J. Appl. Phys. 133, 015901 (2023).10.1063/5.0130483
[34]	Q. Zhang, A. He, F. Zhao, T. Zhou, and P. Wang, “Understanding the spall behaviors of single crystalline aluminum under double decaying shock loadings: Atomistic simulations and theoretical models,” Eur. J. Mech. A 105, 105237 (2024).10.1016/j.euromechsol.2024.105237
[35]	P. Chen, X. Wang, P. Wang, and A. M. He, “Shock response of pre-existing spall damage in copper,” J. Appl. Phys. 131, 015903 (2022).10.1063/5.0070971
[36]	W. Liu, T. Xi, A. He, T. Zhou, J. Xin et al., “Numerical and experimental study of the second ejection from a grooved tin surface under laser-driven shock loading,” Int. J. Impact Eng. 161, 104135 (2022).10.1016/j.ijimpeng.2021.104135
[37]	S. Plimpton, “Fast parallel algorithms for short-range molecular dynamics,” J. Comput. Phys. 117, 1 (1995).10.1006/jcph.1995.1039
[38]	V. V. Zhakhovskii, N. A. Inogamov, Y. V. Petrov, S. I. Ashitkov, and K. Nishihara, “Molecular dynamics simulation of femtosecond ablation and spallation with different interatomic potentials,” Appl. Surf. Sci. 255, 9592 (2009).10.1016/j.apsusc.2009.04.082
[39]	D. A. Young, A. K. McMahan, and M. Ross, “Equation of state and melting curve of helium to very high pressure,” Phys. Rev. B 24, 5119 (1981).10.1103/physrevb.24.5119
[40]	H. Y. Wang, X. S. Li, W. J. Zhu, X. L. Deng, Z. F. Song et al., “Atomistic modelling of the plastic deformation of helium bubbles and voids in aluminium under shock compression,” Radiat. Eff. Defect Solid 169, 109 (2014).10.1080/10420150.2013.848449
[41]	A. Stukowski, “Visualization and analysis of atomistic simulation data with OVITO–the Open Visualization Tool,” Modell. Simul. Mater. Sci. Eng. 18, 015012 (2010).10.1088/0965-0393/18/1/015012
[42]	M. Xiang, S. Jiang, and J. Chen, “Theoretical investigations on melting/crystallization kinetics in overheated/overcooled aluminum at high pressures,” J. Appl. Phys. 126, 125113 (2019).10.1063/1.5118678
