Progress in shock wave diagnostic technology based on velocity interferometers for laser inertial confinement fusion

Wang Feng; Li Yulong; Guan Zanyang; Peng Xiaoshi; Liu Xiangming; Yang Dong; Yang Jiamin; Zhao Zongqing

doi:10.1063/5.0249311

Volume 11 Issue 2

Mar. 2026

Turn off MathJax

Article Contents

Article Navigation > Matter and Radiation at Extremes > 2026 > 11(2): 023401

Wang Feng, Li Yulong, Guan Zanyang, Peng Xiaoshi, Liu Xiangming, Yang Dong, Yang Jiamin, Zhao Zongqing. Progress in shock wave diagnostic technology based on velocity interferometers for laser inertial confinement fusion[J]. Matter and Radiation at Extremes, 2026, 11(2): 023401. doi: 10.1063/5.0249311

Citation:

Wang Feng, Li Yulong, Guan Zanyang, Peng Xiaoshi, Liu Xiangming, Yang Dong, Yang Jiamin, Zhao Zongqing. Progress in shock wave diagnostic technology based on velocity interferometers for laser inertial confinement fusion[J]. Matter and Radiation at Extremes, 2026, 11(2): 023401. doi: 10.1063/5.0249311

Citation:

Wang Feng, Li Yulong, Guan Zanyang, Peng Xiaoshi, Liu Xiangming, Yang Dong, Yang Jiamin, Zhao Zongqing. Progress in shock wave diagnostic technology based on velocity interferometers for laser inertial confinement fusion[J]. Matter and Radiation at Extremes, 2026, 11(2): 023401. doi: 10.1063/5.0249311

PDF( 15094 KB)

Progress in shock wave diagnostic technology based on velocity interferometers for laser inertial confinement fusion

doi: 10.1063/5.0249311

National Key Laboratory of Plasma Physics, Laser Fusion Research Center, China Academy of Engineering Physics, Mianyang 621900, China

More Information

Corresponding author: a)Authors to whom correspondence should be addressed: lfrc_wangfeng@163.com; 2013may6th@sina.com; and gzy0707@mail.ustc.edu.cn
Received Date: 2024-11-17
Accepted Date: 2025-12-15

Available Online: 2026-03-01

Publish Date: 2026-03-01

Abstract

Abstract

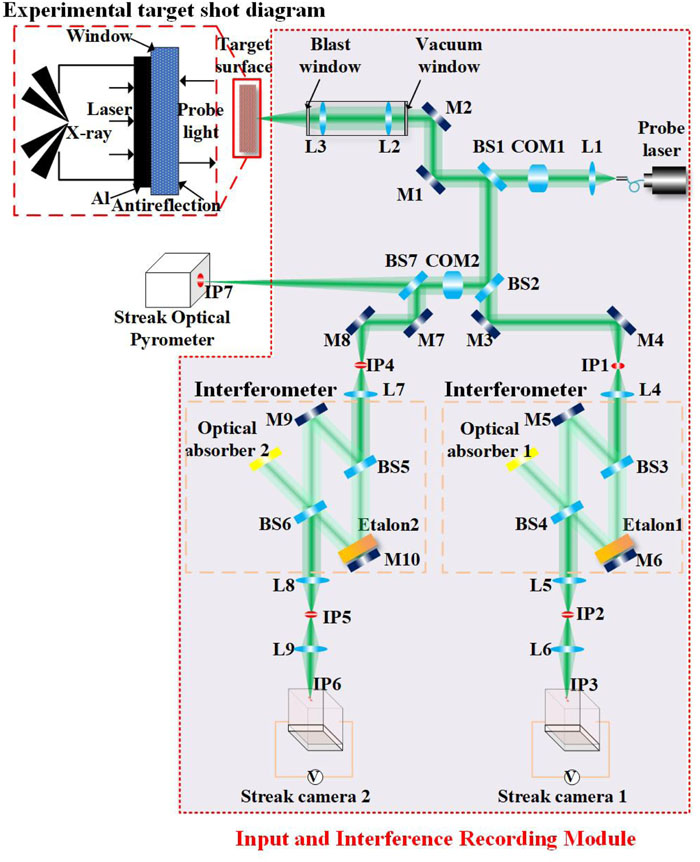

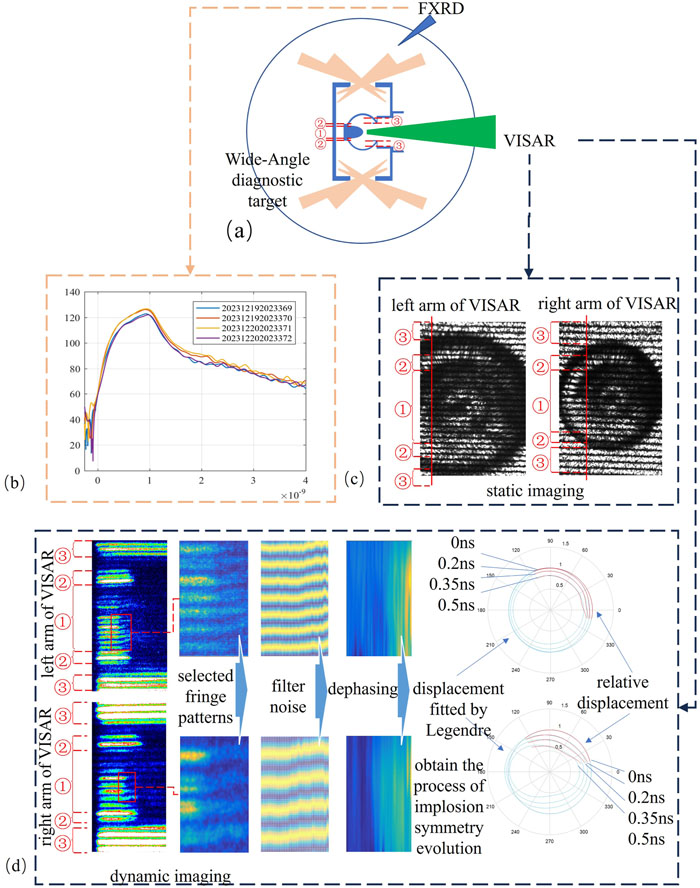

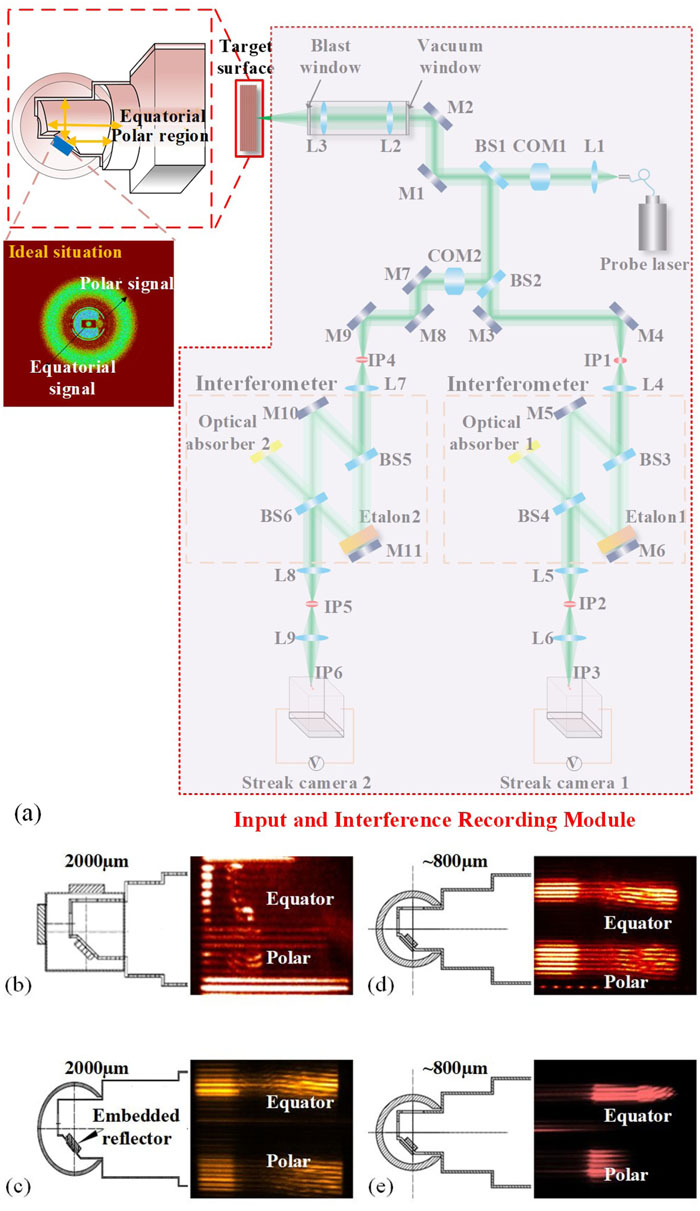

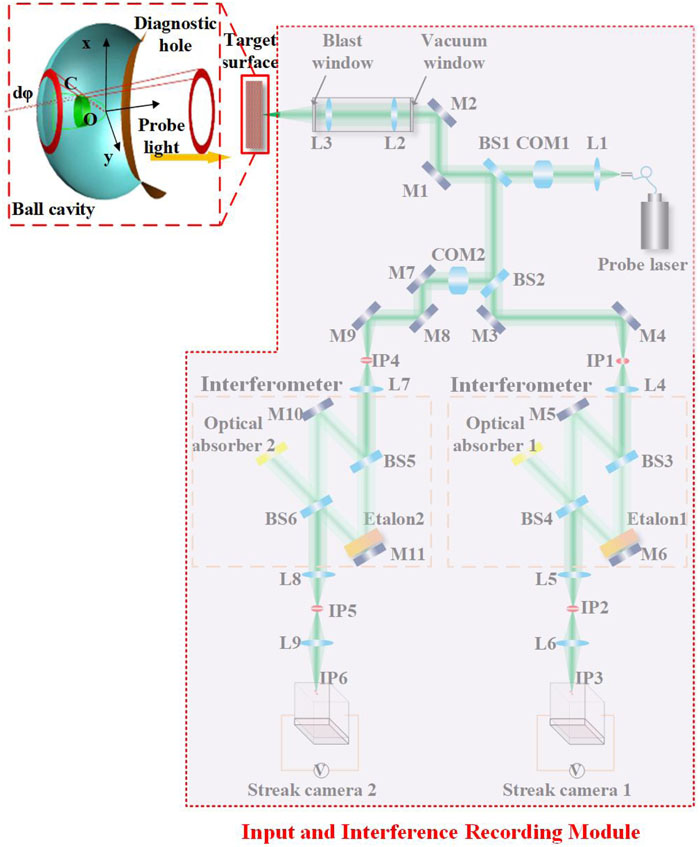

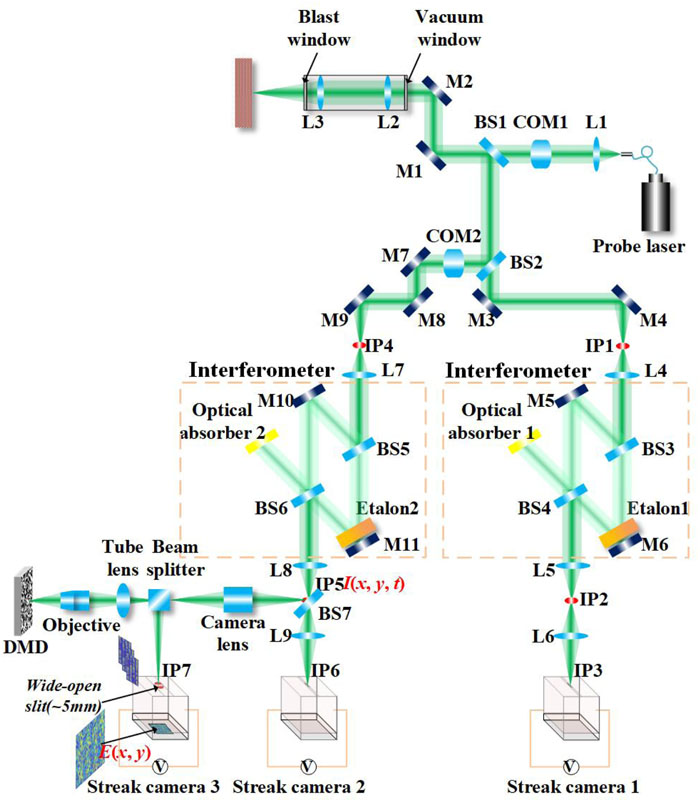

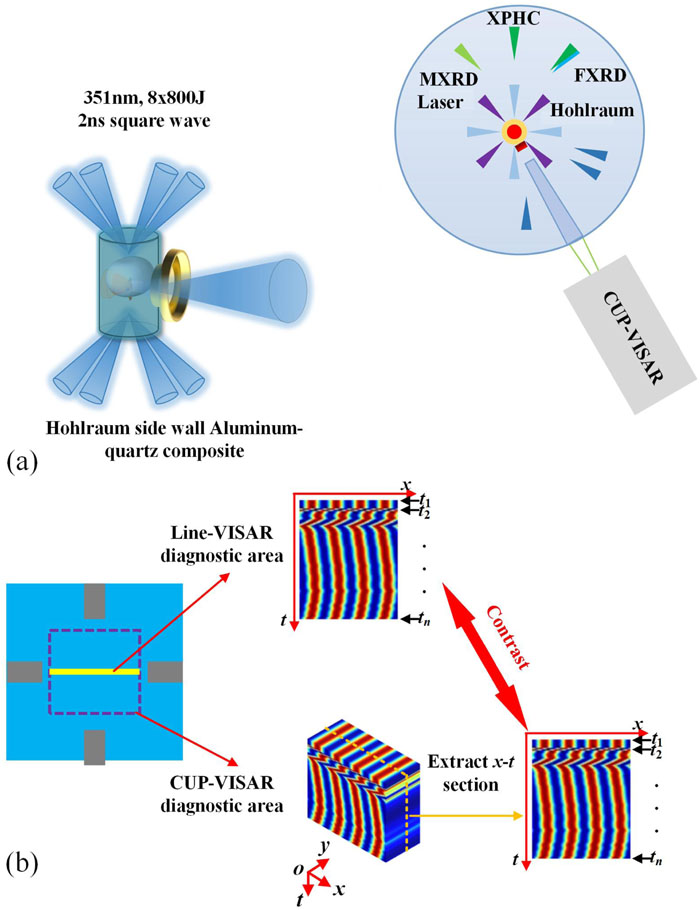

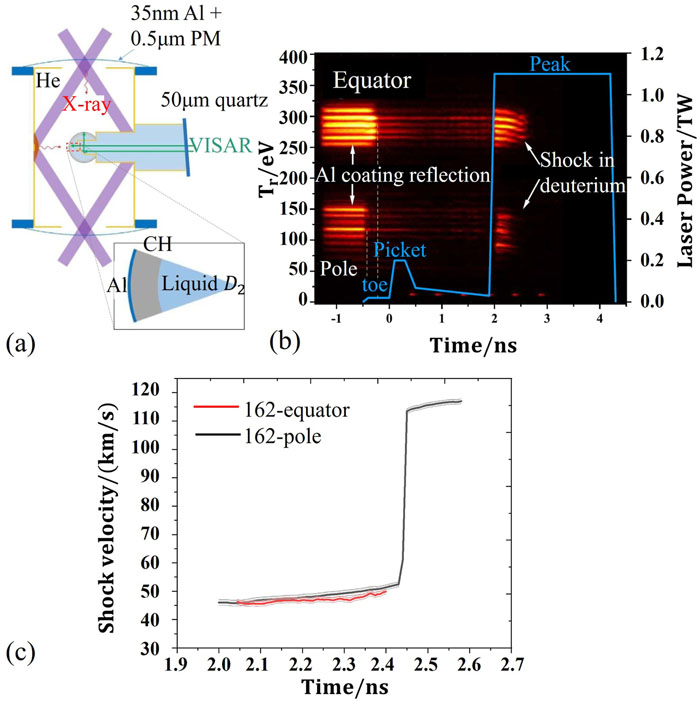

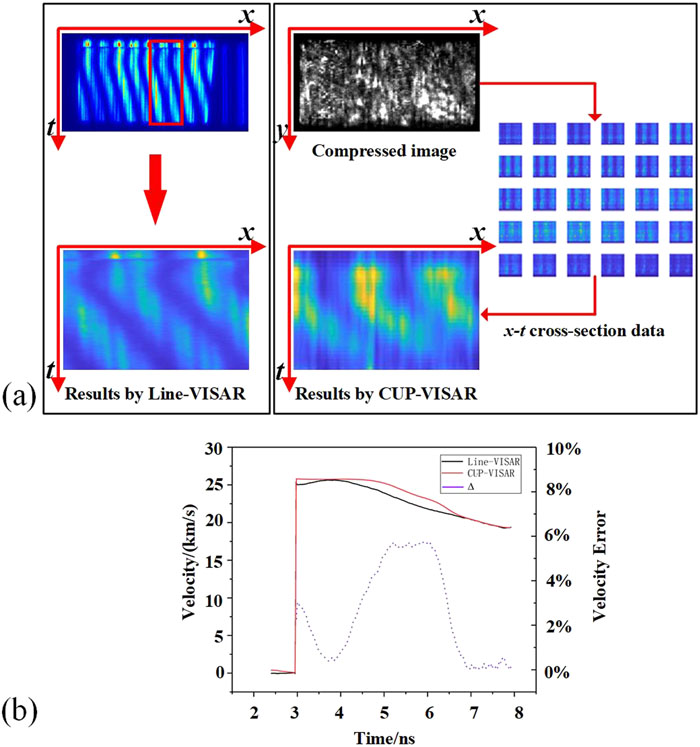

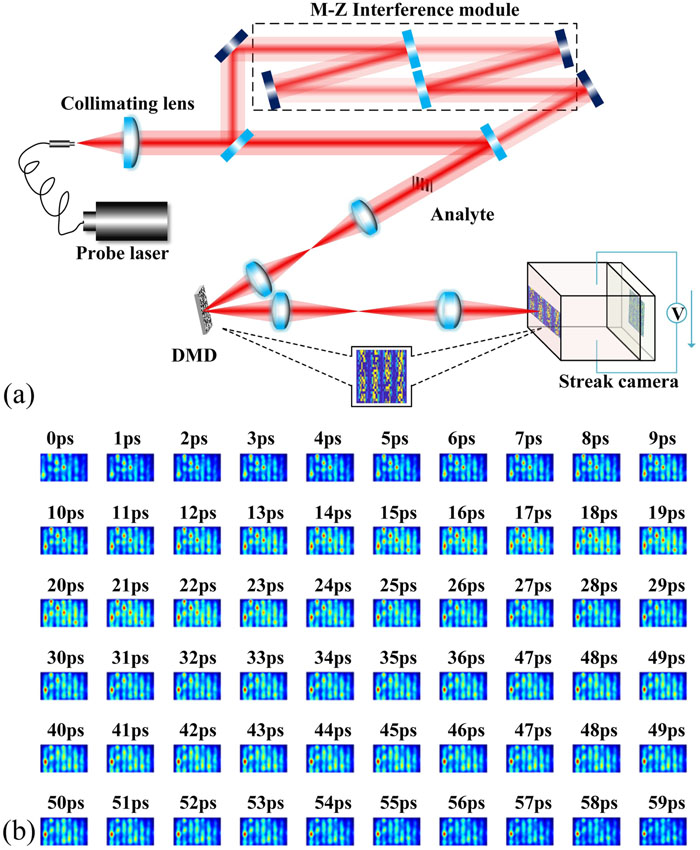

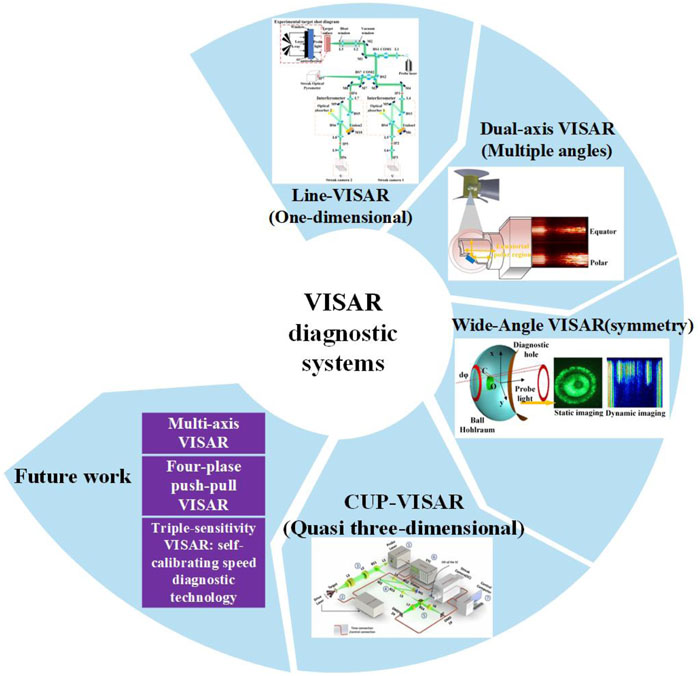

Laser-driven inertial confinement fusion (ICF) is an important experimental platform for high-energy-density physics research under extreme conditions. In ICF research, high-quality shock waves are key to fusion energy release. The velocity interferometer system for any reflector (VISAR) is the most important diagnostic technique for measuring quantities such as shock wave and particle velocities with high precision and high spatiotemporal resolution. This paper provides a detailed introduction to the various configurations of VISAR on 10 and 100 kJ-level laser facilities in China, including Line VISAR, Dual-Axis VISAR, Wide-Angle VISAR, and Compressed Ultrafast Photography-VISAR. Recent advances and applications of VISAR diagnostics at these laser facilities are presented, and the future trend of development of high-spatiotemporal-resolution velocity diagnostic technology is described.
