The effects of incident light wavelength difference on the collective stimulated Brillouin scattering in plasmas

doi: 10.1063/5.0151372

1.
Institute of Applied Physics and Computational Mathematics, Beijing 100094, China
2.
Laser Fusion Research Center, China Academy of Engineering Physics, Mianyang, Sichuan 621900, China
3.
HEDPS, Center for Applied Physics and Technology, and College of Engineering, Peking University, Beijing 100871, China

More Information

Corresponding author: a)Author to whom correspondence should be addressed: liuzj@iapcm.ac.cn
Received Date: 2023-03-21
Accepted Date: 2023-07-09

Available Online: 2023-09-01

Publish Date: 2023-09-01

Abstract

Abstract

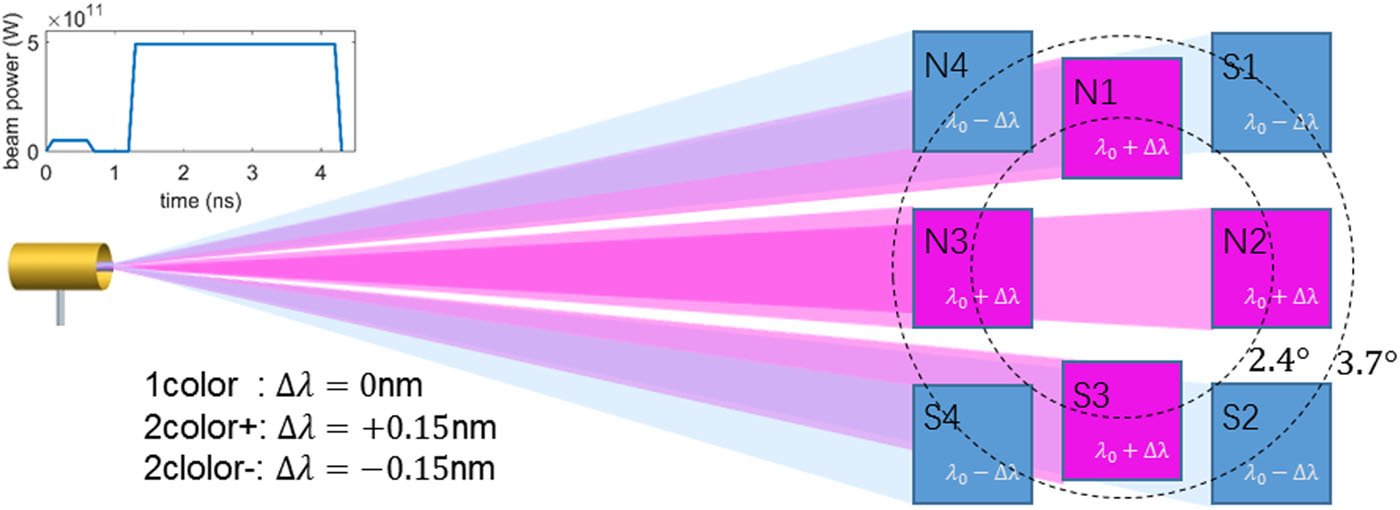

The first laser–plasma interaction experiment using lasers of eight beams grouped into one octad has been conducted on the Shenguang Octopus facility. Although each beam intensity is below its individual threshold for stimulated Brillouin backscattering (SBS), collective behaviors are excited to enhance the octad SBS. In particular, when two-color/cone lasers with wavelength separation 0.3 nm are used, the backward SBS reflectivities show novel behavior in which beams of longer wavelength achieve higher SBS gain. This property of SBS can be attributed to the rotation of the wave vectors of common ion acoustic waves due to the competition of detunings between geometrical angle and wavelength separation. This mechanism is confirmed using massively parallel supercomputer simulations with the three-dimensional laser–plasma interaction code LAP3D.

FullText(HTML)

References(29)

References

[1]	J. D. Lindl, P. Amendt, R. L. Berger, S. G. Glendinning, S. H. Glenzer, S. W. Haan, R. L. Kauffman, O. L. Landen, and L. J. Suter, “The physics basis for ignition using indirect-drive targets on the National Ignition Facility,” Phys. Plasmas 11, 339 (2004).10.1063/1.1578638
[2]	X. T. He, J. W. Li, Z. F. Fan, L. F. Wang, J. Liu, K. Lan, J. F. Wu, and W. H. Ye, “A hybrid-drive nonisobaric-ignition scheme for inertial confinement fusion,” Phys. Plasmas 23, 082706 (2016).10.1063/1.4960973
[3]	K. Lan, J. Liu, Z. Li, X. Xie, W. Huo, Y. Chen, G. Ren, C. Zheng, D. Yang, S. Li, Z. Yang, L. Guo, S. Li, M. Zhang, X. Han, C. Zhai, L. Hou, Y. Li, K. Deng, Z. Yuan, X. Zhan, F. Wang, G. Yuan, H. Zhang, B. Jiang, L. Huang, W. Zhang, K. Du, R. Zhao, P. Li, W. Wang, J. Su, X. Deng, D. Hu, W. Zhou, H. Jia, Y. Ding, W. Zheng, and X. He, “Progress in octahedral spherical hohlraum study,” Matter Radiat. Extremes 1, 8 (2016).10.1016/j.mre.2016.01.003
[4]	W. L. Kruer, S. C. Wilks, B. B. Afeyan, and R. K. Kirkwood, “Energy transfer between crossing laser beams,” Phys. Plasmas 3, 382 (1996).10.1063/1.871863
[5]	P. Michel, L. Divol, E. A. Williams, S. Weber, C. A. Thomas, D. A. Callahan, S. W. Haan, J. D. Salmonson, S. Dixit, D. E. Hinkel, M. J. Edwards, B. J. MacGowan, J. D. Lindl, S. H. Glenzer, and L. J. Suter, “Tuning the implosion symmetry of ICF targets via controlled crossed-beam energy transfer,” Phys. Rev. Lett. 102, 025004 (2009).10.1103/physrevlett.102.025004
[6]	P. Michel, S. H. Glenzer, L. Divol, D. K. Bradley, D. Callahan, S. Dixit, S. Glenn, D. Hinkel, R. K. Kirkwood, J. L. Kline, W. L. Kruer, G. A. Kyrala, S. Le Pape, N. B. Meezan, R. Town, K. Widmann, E. A. Williams, B. J. MacGowan, J. Lindl, and L. J. Suter, “Symmetry tuning via controlled crossed-beam energy transfer on the National Ignition Facility,” Phys. Plasmas 17, 056305 (2010).10.1063/1.3325733
[7]	J. F. Myatt, J. Zhang, R. W. Short, A. V. Maximov, W. Seka, D. H. Froula, D. H. Edgell, D. T. Michel, I. V. Igumenshchev, D. E. Hinkel, P. Michel, and J. D. Moody, “Multiple-beam laser–plasma interactions in inertial confinement fusion,” Phys. Plasmas 21, 055501 (2014).10.1063/1.4878623
[8]	D. Turnbull, P. Michel, J. E. Ralph, L. Divol, J. S. Ross, L. F. Berzak Hopkins, A. L. Kritcher, D. E. Hinkel, and J. D. Moody, “Multibeam seeded Brillouin sidescatter in inertial confinement fusion experiments,” Phys. Rev. Lett. 114, 125001 (2015).10.1103/physrevlett.114.125001
[9]	R. K. Kirkwood, D. P. Turnbull, T. Chapman, S. C. Wilks, M. D. Rosen, R. A. London, L. A. Pickworth, W. H. Dunlop, J. D. Moody, D. J. Strozzi, P. A. Michel, L. Divol, O. L. Landen, B. J. MacGowan, B. M. Van Wonterghem, K. B. Fournier, and B. E. Blue, “Plasma-based beam combiner for very high fluence and energy,” Nat. Phys. 14, 80 (2018).10.1038/nphys4271
[10]	P. Michel, L. Divol, D. Turnbull, and J. D. Moody, “Dynamic control of the polarization of intense laser beams via optical wave mixing in plasmas,” Phys. Rev. Lett. 113, 205001 (2014).10.1103/physrevlett.113.205001
[11]	W. Seka, H. A. Baldis, J. Fuchs, S. P. Regan, D. D. Meyerhofer, C. Stoeckl, B. Yaakobi, R. S. Craxton, and R. W. Short, “Multibeam stimulated Brillouin scattering from hot, solid-target plasmas,” Phys. Rev. Lett. 89, 175002 (2002).10.1103/physrevlett.89.175002
[12]	S. Depierreux, C. Neuville, C. Baccou, V. Tassin, M. Casanova, P.-E. Masson-Laborde, N. Borisenko, A. Orekhov, A. Colaitis, A. Debayle, G. Duchateau, A. Heron, S. Huller, P. Loiseau, P. Nicolaï, D. Pesme, C. Riconda, G. Tran, R. Bahr, J. Katz, C. Stoeckl, W. Seka, V. Tikhonchuk, and C. Labaune, “Experimental investigation of the collective Raman scattering of multiple laser beams in inhomogeneous plasmas,” Phys. Rev. Lett. 117, 235002 (2016).10.1103/physrevlett.117.235002
[13]	C. Neuville, V. Tassin, D. Pesme, M.-C. Monteil, P.-E. Masson-Laborde, C. Baccou, P. Fremerye, F. Philippe, P. Seytor, D. Teychenné, W. Seka, J. Katz, R. Bahr, and S. Depierreux, “Experimental evidence of the collective Brillouin scattering of multiple laser beams sharing acoustic waves,” Phys. Rev. Lett. 116, 235002 (2016).10.1103/physrevlett.116.235002
[14]	S. Depierreux, C. Neuville, V. Tassin, M.-C. Monteil, P.-E. Masson-Laborde, C. Baccou, P. Fremerye, F. Philippe, P. Seytor, D. Teychenné, J. Katz, R. Bahr, M. Casanova, N. Borisenko, L. Borisenko, A. Orekhov, A. Colaitis, A. Debayle, G. Duchateau, A. Heron, S. Huller, P. Loiseau, P. Nicolai, C. Riconda, G. Tran, C. Stoeckl, W. Seka, V. Tikhonchuk, D. Pesme, and C. Labaune, “Experimental investigation of the collective stimulated Brillouin and Raman scattering of multiple laser beams in inertial confinement fusion experiments,” Plasma Phys. Controlled Fusion 62, 014024 (2020).10.1088/1361-6587/ab5acd
[15]	P. Michel, L. Divol, E. L. Dewald, J. L. Milovich, M. Hohenberger, O. S. Jones, L. B. Hopkins, R. L. Berger, W. L. Kruer, and J. D. Moody, “Multibeam stimulated Raman scattering in inertial confinement fusion conditions,” Phys. Rev. Lett. 115, 055003 (2015).10.1103/physrevlett.115.055003
[16]	D. F. DuBois, B. Bezzerides, and H. A. Rose, “Collective parametric instabilities of many overlapping laser beams with finite bandwidth,” Phys. Fluids B 4, 241 (1992).10.1063/1.860439
[17]	J. J. Thomson and J. I. Karush, “Effects of finite-bandwidth driver on the parametric instability,” Phys. Fluids 17, 1608 (1974).10.1063/1.1694940
[18]	J. J. Thomson, “Finite-bandwidth effects on the parametric instability in an inhomogeneous plasma,” Nucl. Fusion 15, 237 (1975).10.1088/0029-5515/15/2/008
[19]	S. P. Obenschain, N. C. Luhmann, Jr., and P. T. Greiling, “Effects of finite-bandwidth driver pumps on the parametric-decay instability,” Phys. Rev. Lett. 36, 1309 (1976).10.1103/physrevlett.36.1309
[20]	V. J. Harper-Slaboszewicz, K. Mizuno, T. Idehara, and J. S. De Groot, “Finite bandwidth drive effect on the parametric decay instability near the lower hybrid frequency,” Phys. Fluids B 2, 2525 (1990).10.1063/1.859374
[21]	P. N. Guzdar, C. S. Liu, and R. H. Lehmberg, “The effect of bandwidth on the convective Raman instability in inhomogeneous plasmas,” Phys. Fluids B 3, 2882 (1991).10.1063/1.859921
[22]	R. K. Follett, J. G. Shaw, J. F. Myatt, H. Wen, D. H. Froula, and J. P. Palastro, “Thresholds of absolute two-plasmon-decay and stimulated Raman scattering instabilities driven by multiple broadband lasers,” Phys. Plasmas 28, 032103 (2021).10.1063/5.0037869
[23]	Z. Wanguo, Z. Xiaomin, W. Xiaofeng, J. Feng, S. Zhan, Z. Kuixin, Y. Xiaodong, J. Xiaodong, S. Jingqin, Z. Hai, L. Mingzhong, W. Jianjun, H. Dongxia, H. Shaobo, X. Yong, P. Zhitao, F. Bin, G. Liangfu, L. Xiaoqun, Z. Qihua, Y. Haiwu, Y. Yong, F. Dianyuan, and Z. Weiyan, “Status of the SG-III solid-state laser facility,” J. Phys.: Conf. Ser. 112, 032009 (2008).10.1088/1742-6596/112/3/032009
[24]	W. Zheng, X. Wei, Q. Zhu, F. Jing, D. Hu, X. Yuan, W. Dai, W. Zhou, F. Wang, D. Xu, X. Xie, B. Feng, Z. Peng, L. Guo, Y. Chen, X. Zhang, L. Liu, D. Lin, Z. Dang, Y. Xiang, R. Zhang, F. Wang, H. Jia, and X. Deng, “Laser performance upgrade for precise ICF experiment in SG-Ⅲ laser facility,” Matter Radiat. Extremes 2, 243 (2017).10.1016/j.mre.2017.07.004
[25]	P. Song, C. Zhai, S. Li, Y. Heng, J. Qi, X. Hang, R. Yang, J. Cheng, Q. Zeng, X. Hu, S. Wang, Y. Shi, W. Zheng, P. Gu, S. Zou, X. Li, Y. Zhao, H. Zhang, A. Zhang, H. An, J. Li, W. Pei, and S. Zhu, “LARED-Integration code for numerical simulation of the whole process of the indirect-drive laser inertial confinement fusion,” High Power Laser Part. Beams 27, 032007 (2015).10.11884/HPLPB201527.032007
[26]	K. B. Wharton, R. K. Kirkwood, S. H. Glenzer, K. G. Estabrook, B. B. Afeyan, B. I. Cohen, J. D. Moody, and C. Joshi, “Observation of energy transfer between identical-frequency laser beams in a flowing plasma,” Phys. Rev. Lett. 81, 2248 (1998).10.1103/physrevlett.81.2248
[27]	T. Chapman, P. Michel, J.-M. G. Di Nicola, R. L. Berger, P. K. Whitman, J. D. Moody, K. R. Manes, M. L. Spaeth, M. A. Belyaev, C. A. Thomas, and B. J. MacGowan, “Investigation and modeling of optics damage in high-power laser systems caused by light backscattered in plasma at the target,” J. Appl. Phys. 125, 033101 (2019).10.1063/1.5070066
[28]	Z. J. Liu, Q. Wang, W. S. Zhang, B. Li, P. Li, L. H. Cao, W. G. Zheng, X. Li, and J. W. Li, “Suppression of stimulated Brillouin scattering by multicolor alternating-polarization bundle light in inertial confinement fusion,” Phys. Plasmas 30, 032703 (2023).10.1063/5.0137403
