Semi-hydro-equivalent design and performance extrapolation between 100 kJ-scale and NIF-scale indirect drive implosion

Zhang Huasen; Kang Dongguo; Wu Changshu; Hao Liang; Shen Hao; Zou Shiyang; Zhu Shaoping; Ding Yongkun

doi:10.1063/5.0150343

Volume 9 Issue 1

Jan. 2024

Turn off MathJax

Article Contents

Article Navigation > Matter and Radiation at Extremes > 2024 > 9(1): 015601

Zhang Huasen, Kang Dongguo, Wu Changshu, Hao Liang, Shen Hao, Zou Shiyang, Zhu Shaoping, Ding Yongkun. Semi-hydro-equivalent design and performance extrapolation between 100 kJ-scale and NIF-scale indirect drive implosion[J]. Matter and Radiation at Extremes, 2024, 9(1): 015601. doi: 10.1063/5.0150343

Citation:

Zhang Huasen, Kang Dongguo, Wu Changshu, Hao Liang, Shen Hao, Zou Shiyang, Zhu Shaoping, Ding Yongkun. Semi-hydro-equivalent design and performance extrapolation between 100 kJ-scale and NIF-scale indirect drive implosion[J]. Matter and Radiation at Extremes, 2024, 9(1): 015601. doi: 10.1063/5.0150343

Citation:

Zhang Huasen, Kang Dongguo, Wu Changshu, Hao Liang, Shen Hao, Zou Shiyang, Zhu Shaoping, Ding Yongkun. Semi-hydro-equivalent design and performance extrapolation between 100 kJ-scale and NIF-scale indirect drive implosion[J]. Matter and Radiation at Extremes, 2024, 9(1): 015601. doi: 10.1063/5.0150343

PDF( 8236 KB)

Semi-hydro-equivalent design and performance extrapolation between 100 kJ-scale and NIF-scale indirect drive implosion

doi: 10.1063/5.0150343

1.
Laboratory of Computational Physics, Institute of Applied Physics and Computational Mathematics, Beijing 10088, China
2.
Institute of Applied Physics and Computational Mathematics, Beijing 10088, China

More Information

Corresponding author: a)Author to whom correspondence should be addressed: kang_dongguo@iapcm.ac.cn
Received Date: 2023-03-14
Accepted Date: 2023-09-22

Available Online: 2024-01-01

Publish Date: 2024-01-01

Abstract

Abstract

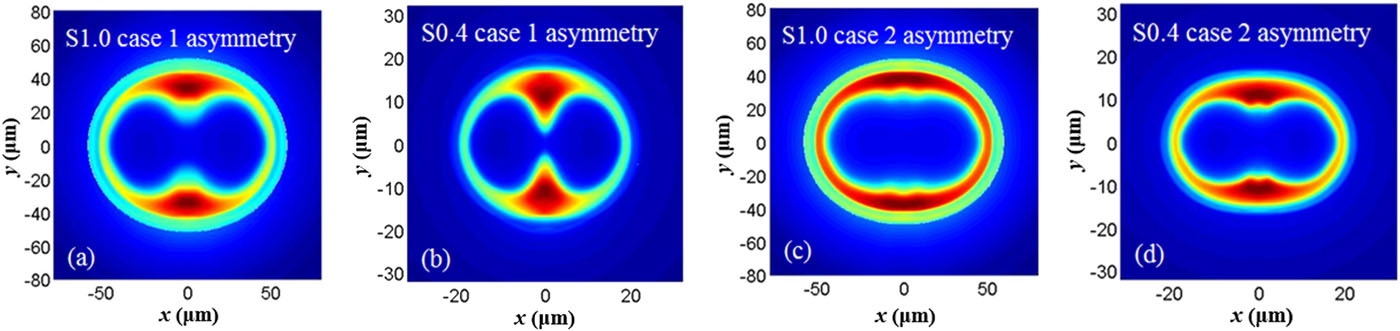

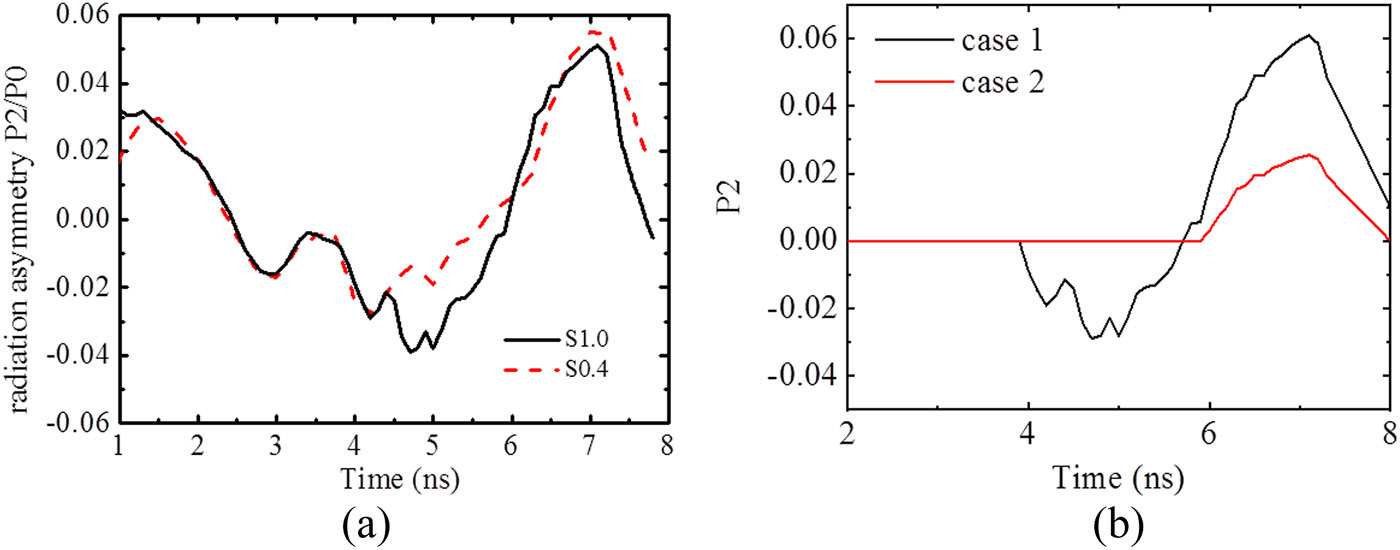

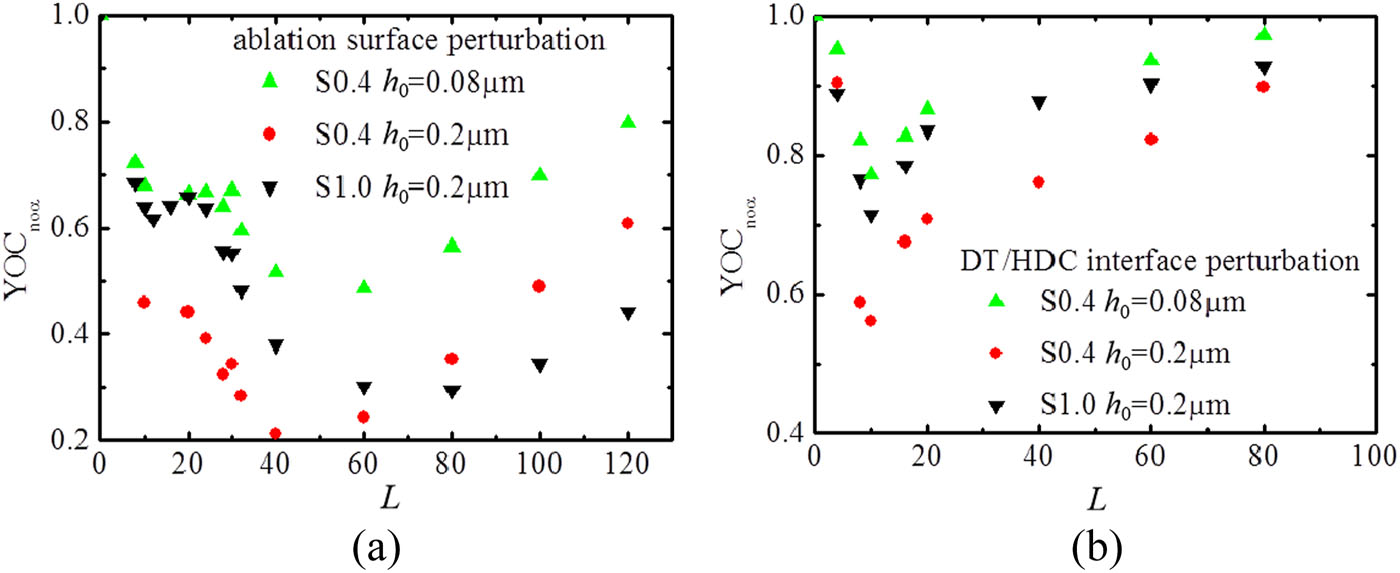

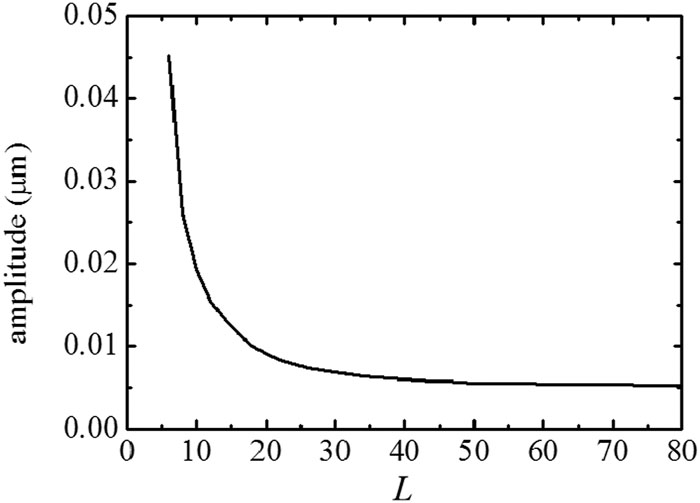

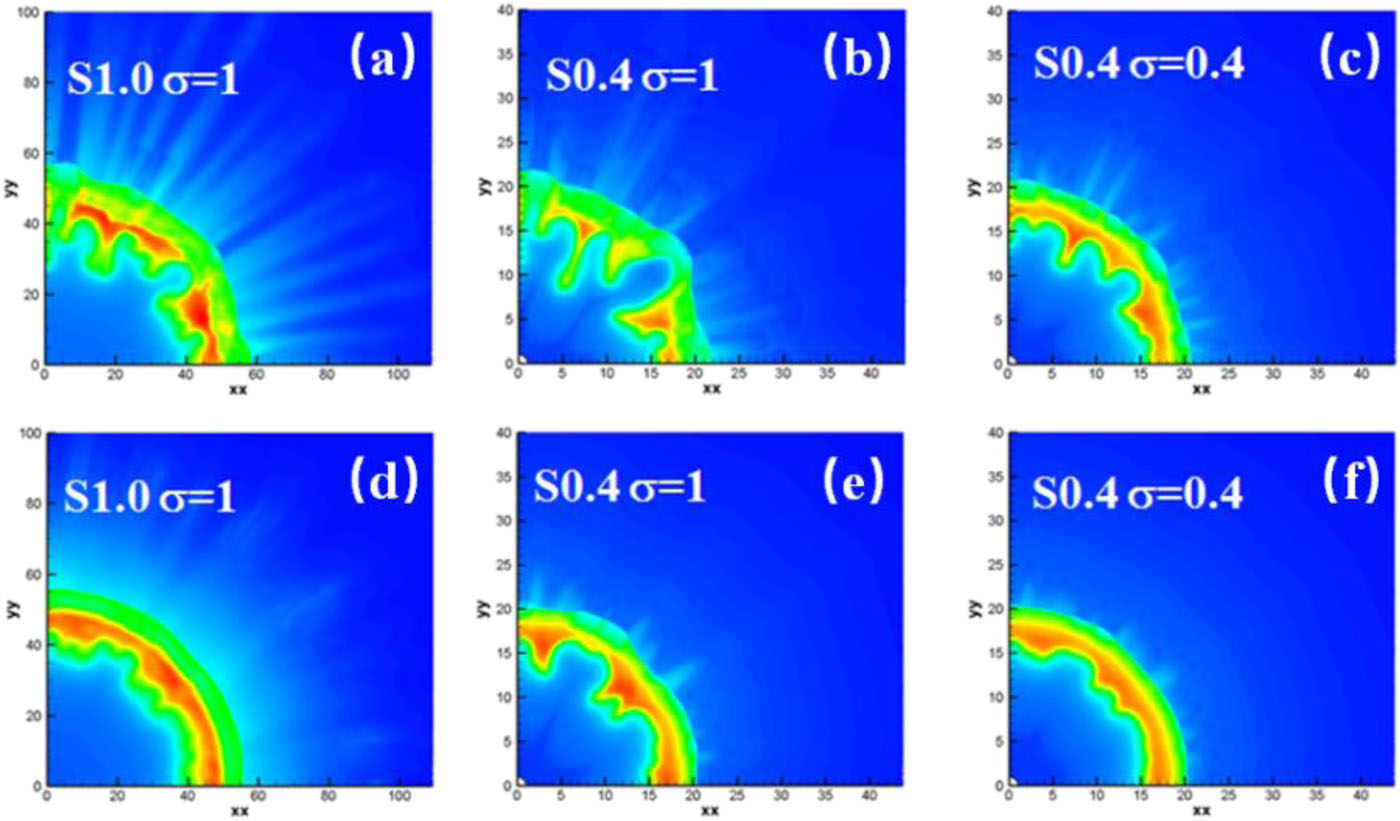

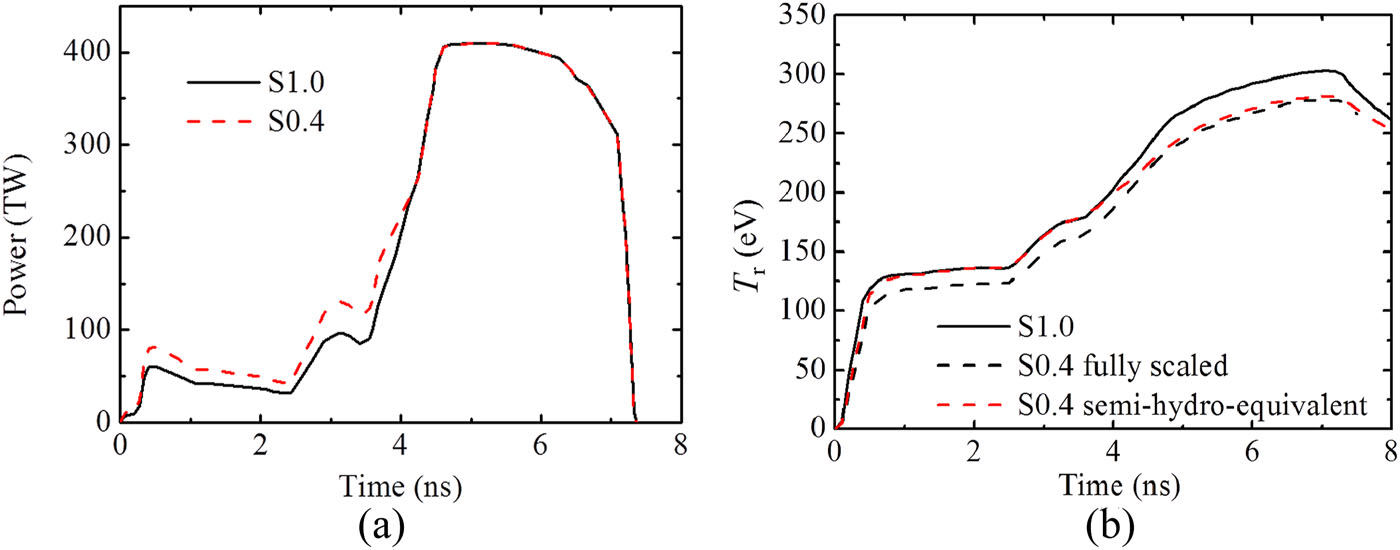

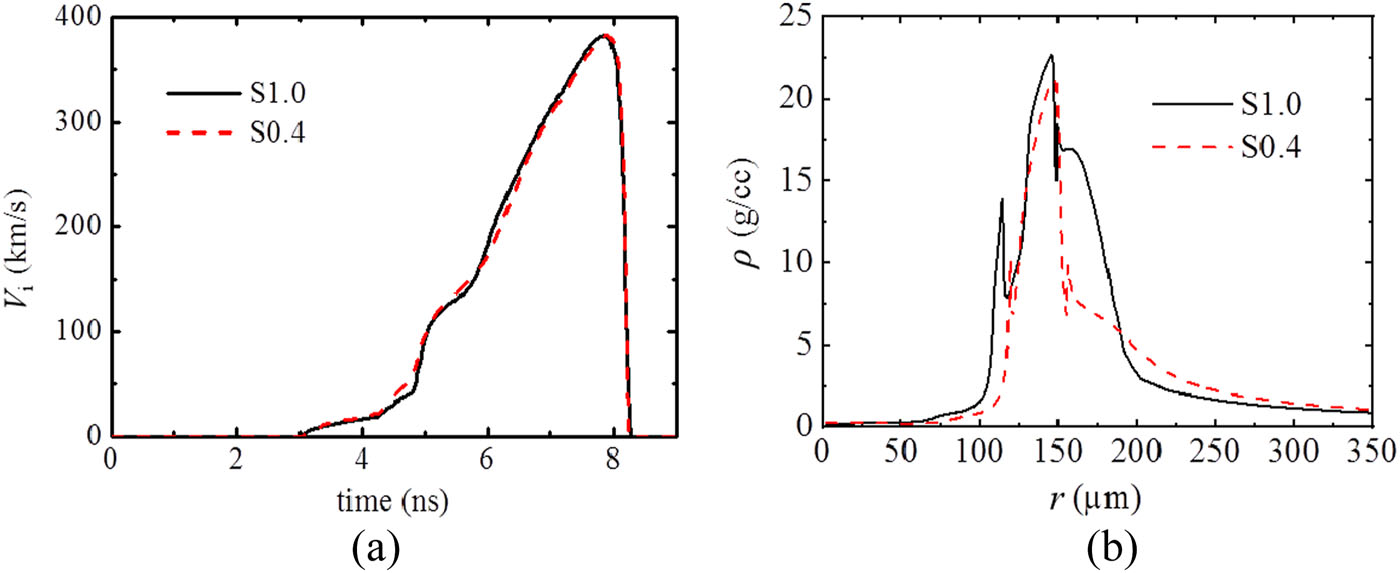

Extrapolation of implosion performance between different laser energy scales is investigated for indirect drive through a semi-hydro-equivalent design. Since radiation transport is non-hydro-equivalent, the peak radiation temperature of the hohlraum and the ablation velocity of the capsule ablator are not scale-invariant when the sizes of the hohlraum and the capsule are scale-varied. A semi-hydro-equivalent design method that keeps the implosion velocity V_i, adiabat α_F, and PL/Rhc2 (where P_L is the laser power and R_hc is the hohlraum and capsule scale length) scale-invariant, is proposed to create hydrodynamically similar implosions. The semi-hydro-equivalent design and the scaled implosion performance are investigated for the 100 kJ Laser Facility (100 kJ-scale) and the National Ignition Facility (NIF-scale) with about 2 MJ laser energy. It is found that the one-dimensional implosion performance is approximately hydro-equivalent when V_i and α_F are kept the same. Owing to the non-hydro-equivalent radiation transport, the yield-over-clean without α-particle heating (YOC_noα) is slightly lower at 100 kJ-scale than at NIF-scale for the same scaled radiation asymmetry or the same initial perturbation of the hydrodynamic instability. The overall scaled two-dimensional implosion performance is slightly lower at 100 kJ-scale. The general Lawson criterion factor scales as χnoα2D∼S1.06±0.04 (where S is the scale-variation factor) for the semi-hydro-equivalent implosion design with a moderate YOC_noα. Our study indicates that χ_noα ≈ 0.379 is the minimum requirement for the 100 kJ-scale implosion to demonstrate the ability to achieve marginal ignition at NIF-scale.

FullText(HTML)

References(40)

References

[1]	S. Atzeni and J. Meyer-ter-Vehn, The Physics of Inertial Fusion (Clarendon, Oxford, 2004).
[2]	R. S. Craxton, K. S. Anderson, T. R. Boehly, V. N. Goncharov, D. R. Harding et al., “Direct-drive inertial confinement fusion: A review,” Phys. Plasmas 22, 110501 (2015).10.1063/1.4934714
[3]	J. D. Lindl, P. Amendt, R. L. Berger, S. G. Glendinning, S. H. Glenzer et al., “The physics basis for ignition using indirect-drive targets on the National Ignition Facility,” Phys. Plasmas 11, 339 (2004).10.1063/1.1578638
[4]	J. D. Lawson, “Some criteria for a power producing thermonuclear reactor,” Proc. Phys. Soc., London, Sect. B 70, 6 (1957).10.1088/0370-1301/70/1/303
[5]	C. D. Zhou and R. Betti, “A measurable Lawson criterion and hydro-equivalent curves for inertial confinement fusion,” Phys. Plasmas 15, 102707 (2008).10.1063/1.2998604
[6]	P. Y. Chang, R. Betti, B. K. Spears, K. S. Anderson, J. Edwards et al., “Generalized measurable ignition criterion for inertial confinement fusion,” Phys. Rev. Lett. 104, 135002 (2010).10.1103/physrevlett.104.135002
[7]	R. Betti, P. Y. Chang, B. K. Spears, K. S. Anderson, J. Edwards et al., “Thermonuclear ignition in inertial confinement fusion and comparison with magnetic confinement,” Phys. Plasmas 17, 058102 (2010).10.1063/1.3380857
[8]	B. K. Spears, S. Glenzer, M. J. Edwards, S. Brandon, D. Clark et al., “Performance metrics for inertial confinement fusion implosions: Aspects of the technical framework for measuring progress in the National Ignition Campaign,” Phys. Plasmas 19, 056316 (2012).10.1063/1.3696743
[9]	J. D. Lindl, O. Landen, J. Edwards, E. Moses, and NIC Team, “Review of the National Ignition Campaign 2009-2012,” Phys. Plasmas 21, 020501 (2014).10.1063/1.4865400
[10]	A. R. Christopherson, R. Betti, J. Howard, K. M. Woo, A. Bose et al., “Theory of alpha heating in inertial fusion: Alpha-heating metrics and the onset of the burning-plasma regime,” Phys. Plasmas 25, 072704 (2018).10.1063/1.5030337
[11]	J. D. Lindl, S. W. Haan, O. L. Landen, A. R. Christopherson, and R. Betti, “Progress toward a self-consistent set of 1D ignition capsule metrics in ICF,” Phys. Plasmas 25, 122704 (2018).10.1063/1.5049595
[12]	S. Le Pape, L. F. Berzak Hopkins, L. Divol, A. Pak, E. Dewald , “Fusion energy output greater than the kinetic energy of an imploding shell at the National Ignition Facility,” Phys. Rev. Lett 120, 245003 (2018).10.1103/physrevlett.120.245003
[13]	P. K. Patel, P. T. Springer, C. R. Weber, L. C. Jarrott, O. A. Hurricane et al., “Hotspot conditions achieved in inertial confinement fusion experiments on the National Ignition Facility,” Phys. Plasmas 27, 050901 (2020).10.1063/5.0003298
[14]	A. B. Zylstra, A. L. Kritcher, O. A. Hurricane, D. A. Callahan, K. Baker et al., “Record energetics for an inertial fusion implosion at NIF,” Phys. Rev. Lett. 126, 025001 (2021).10.1103/physrevlett.126.025001
[15]	A. B. Zylstra, O. A. Hurricane, D. A. Callahan, A. L. Kritcher, J. E. Ralph et al., “Burning plasma achieved in inertial fusion,” Nature 601, 542 (2022).10.1038/s41586-021-04281-w
[16]	A. L. Kritcher, C. V. Young, H. F. Robey, C. R. Weber, A. B. Zylstra et al., “Design of inertial fusion implosions reaching the burning plasma regime,” Nat. Phys. 18, 251 (2022).10.1038/s41567-021-01485-9
[17]	H. Abu-Shawareb, R. Acree, P. Adams, J. Adams, B. Addis , “Lawson criterion for ignition exceeded in an inertial fusion experiment,” Phys. Rev. Lett 129, 075001 (2022).10.1103/physrevlett.129.075001
[18]	A. L. Kritcher, A. B. Zylstra, D. A. Callahan, O. A. Hurricane, C. R. Weber et al., “Design of an inertial fusion experiment exceeding the Lawson criterion for ignition,” Phys. Rev. E 106, 025201 (2022).10.1103/physreve.106.025201
[19]	A. B. Zylstra, A. L. Kritcher, O. A. Hurricane, D. A. Callahan, J. E. Ralph et al., “Experimental achievement and signatures of ignition at the National Ignition Facility,” Phys. Rev. E 106, 025202 (2022).10.1103/physreve.106.025202
[20]
[21]	R. Nora, R. Betti, K. S. Anderson, A. Shvydky, A. Bose et al., “Theory of hydro-equivalent ignition for inertial fusion and its applications to OMEGA and the National Ignition Facility,” Phys. Plasmas 21, 056316 (2014).10.1063/1.4875331
[22]	A. Bose, K. M. Woo, R. Betti, E. M. Campbell, D. Mangino et al., “Core conditions for alpha heating attained in direct-drive inertial confinement fusion,” Phys. Rev. E 94, 011201(R) (2016).10.1103/physreve.94.011201
[23]	A. Bose, R. Betti, D. Mangino, K. M. Woo, D. Patel et al., “Analysis of trends in experimental observables: Reconstruction of the implosion dynamics and implications for fusion yield extrapolation for direct-drive cryogenic targets on OMEGA,” Phys. Plasmas 25, 062701 (2018).10.1063/1.5026780
[24]	X. T. He and W. Y. Zhang, “Inertial fusion research in China,” Eur. Phys. J. D 44, 227 (2007).10.1140/epjd/e2007-00005-1
[25]	W. Zheng, X. Wei, Q. Zhu, F. Jing, D. Hu et al., “Laser performance of the SG-III laser facility,” High Power Laser Sci. Eng. 4, e21 (2016).10.1017/hpl.2016.20
[26]	D. S. Clark, C. R. Weber, J. L. Milovich, A. E. Pak, D. T. Casey, B. A. Hammel, D. D. Ho, O. S. Jones, J. M. Koning, A. L. Kritcher et al., “Three-dimensional modeling and hydrodynamic scaling of National Ignition Facility implosions,” Phys. Plasmas 26, 050601 (2019).10.1063/1.5091449
[27]	O. A. Hurricane, P. T. Springer, P. K. Patel, D. A. Callahan, K. Baker et al., “Approaching a burning plasma on the NIF,” Phys. Plasmas 26, 052704 (2019).10.1063/1.5087256
[28]	A. B. Zylstra, D. T. Casey, A. Kritcher, L. Pickworth, B. Bachmann et al., “Hot-spot mix in large-scale HDC implosions at NIF,” Phys. Plasmas 27, 092709 (2020).10.1063/5.0003779
[29]	P. Song, C. L. Zhai, S. G. Li, H. Yong, J. Qi, X. D. Hang, R. Yang, J. Cheng, Q. H. Zeng, X. Y. Hu, S. Wang, Y. Shi, W. D. Zheng, P. J. Gu, S. Y. Zou, X. Li, Y. Q. Zhao, H. S. Zhang, A. Q. Zhang, H. B. An, J. H. Li, W. B. Pei, and S. P. Zhu, “LARED-Integration code for numerical simulation of the whole process of the indirect-drive laser inertial confinement fusion,” High Power Laser Part. Beams 27, 032007 (2015).10.11884/HPLPB201527.032007
[30]	Z. Fan, X. T. He, J. Liu, G. Ren, B. Liu, J. Wu, L. F. Wang, and W. Ye, “A wedged-peak-pulse design with medium fuel adiabat for indirect-drive fusion,” Phys. Plasmas 21, 100705 (2014).10.1063/1.4898682
[31]	S. A. MacLaren, L. P. Masse, C. E. Czajka, S. F. Khan, G. A. Kyrala et al., “A near one-dimensional indirectly driven implosion at convergence ratio 30,” Phys. Plasmas 25, 056311 (2018).10.1063/1.5017976
[32]	D. A. Callahan, O. A. Hurricane, J. E. Ralph, C. A. Thomas, K. L. Baker et al., “Exploring the limits of case-to-capsule ratio, pulse length, and picket energy for symmetric hohlraum drive on the National Ignition Facility Laser,” Phys. Plasmas 25, 056305 (2018).10.1063/1.5020057
[33]	Lord Rayleigh, “Investigation of the character of the equilibrium of an incompressible heavy fluid of variable density,” Proc. London Math. Soc. s1-14, 170 (1882).10.1112/plms/s1-14.1.170
[34]	G. Taylor, “The instability of liquid surface when accelerated in a direction perpendicular to their planes,” Proc. R. Soc. London, Ser. A 201, 192 (1950).10.1098/rspa.1950.0052
[35]	R. D. Richtmyer, “Taylor instability in shock acceleration of compressible fluid,” Commun. Pure Appl. Math. 13, 297 (1960).10.1002/cpa.3160130207
[36]	E. E. Meshkov, “Instability of the interface of two gases accelerated by a shock wave,” Fluid Dyn 4, 101 (1969).10.1007/bf01015969
[37]	H. Takabe, K. Mima, L. Montierth, and R. L. Morse, “Self-consistent growth rate of the Rayleigh–Taylor instability in an ablatively accelerating plasma,” Phys. Fluids 28, 3676 (1985).10.1063/1.865099
[38]	H. Zhang, R. Betti, V. Gopalaswamy, R. Yan, and H. Aluie, “Nonlinear excitation of the ablative Rayleigh-Taylor instability for all wave numbers,” Phys. Rev. E 97, 011203(R) (2018).10.1103/physreve.97.011203
[39]	H. Zhang, R. Betti, R. Yan, and H. Aluie, “Nonlinear bubble competition of the multimode ablative Rayleigh–Taylor instability and applications to inertial confinement fusion,” Phys. Plasmas 27, 122701 (2020).10.1063/5.0023541
[40]	H. Zhang, R. Betti, R. Yan, D. Zhao, D. Shvarts, and H. Aluie, “Self-similar multimode bubble-front evolution of the ablative Rayleigh-Taylor instability in two and three dimensions,” Phys. Rev. Lett. 121, 185002 (2018).10.1103/physrevlett.121.185002
